Запчасти Case IH PUMA 195 (1.82.713/01) - (VAR.414) HYDRAULIC TRAILER BRAKE (UNIVERSAL) - BRAKING SYSTEM (07) - HYDRAULIC SYSTEM

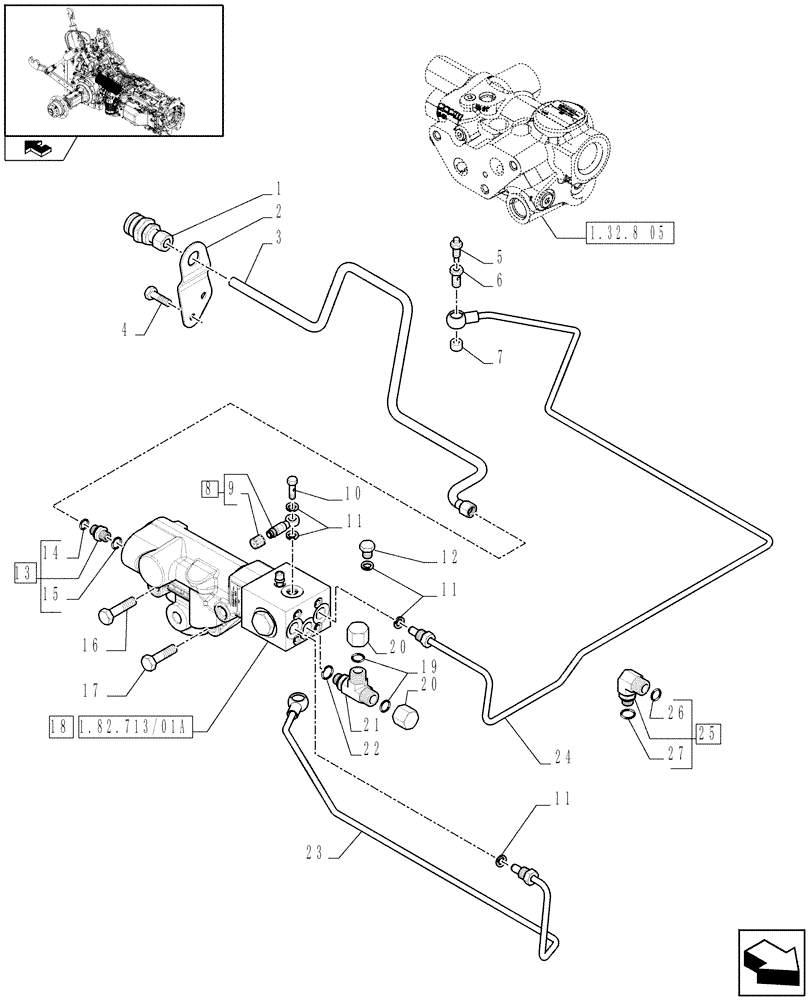

Схема запчастей Case IH PUMA 195 - (1.82.713/01) - (VAR.414) HYDRAULIC TRAILER BRAKE (UNIVERSAL) - BRAKING SYSTEM (07) - HYDRAULIC SYSTEM
24
3
15
2
22
6
17
20
9
5
7
11
8
27
1
11
19
20
23
26
14
16
12
10
18
25
4
13
11
21
home
1.82.713/01a
1.32.8 05

Артикул

Название

Примечание

Количество

1

44015354

QUICK MALE COUPLING

1шт.

2

5196322

BRACKET

1шт.

3

87608334

TUBE

1шт.

4

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

M12 x 1.25.20

2шт.

5

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

6

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

7

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

8

82030175

BANJO FITTING,M8 x 1 x 53mm

1шт.

9

44995074

PLUG,M8 x 1.0

1шт.

10

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

11

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

5шт.

12

47131496

PLUG,Hex, M12 x 1

M12 x 1

1шт.

13

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

16

14308921

HEX SOC SCREW,M8 x 60mm, Cl 8.8

M8 x 60

2шт.

17

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

18

87601534

BRAKE VALVE

ASSY

1шт.

Pilot Piston Diam.16MM

1шт.

18

84241742

BRAKE VALVE

ASSY

1шт.

Pilot Piston Diam.22MM

1шт.

19

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

20

87668376

CAP,9/16"-18 Inch THD

2шт.

21

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

Incl.19, 22

1шт.

22

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

23

87608326

BRAKE LINE

RH Brake

1шт.

24

87718500

HYD TUBE

LH Brake, Serial Range: -C6802

1шт.

24

84326329

PIPE

, Start Serial: D6802

1шт.

25

5185562

ELBOW

1шт.

26

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

27

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Выбрано товаров: 31
