Запчасти Case IH PUMA 195 (1.76.0/02[01]) - (VAR.613) VIRTUAL TERMINAL AFS PRO200 MOUNTED ON IMPLEMENT BRACKET - ISO BUS MOUNTING - C6514 (06) - ELECTRICAL SYSTEMS

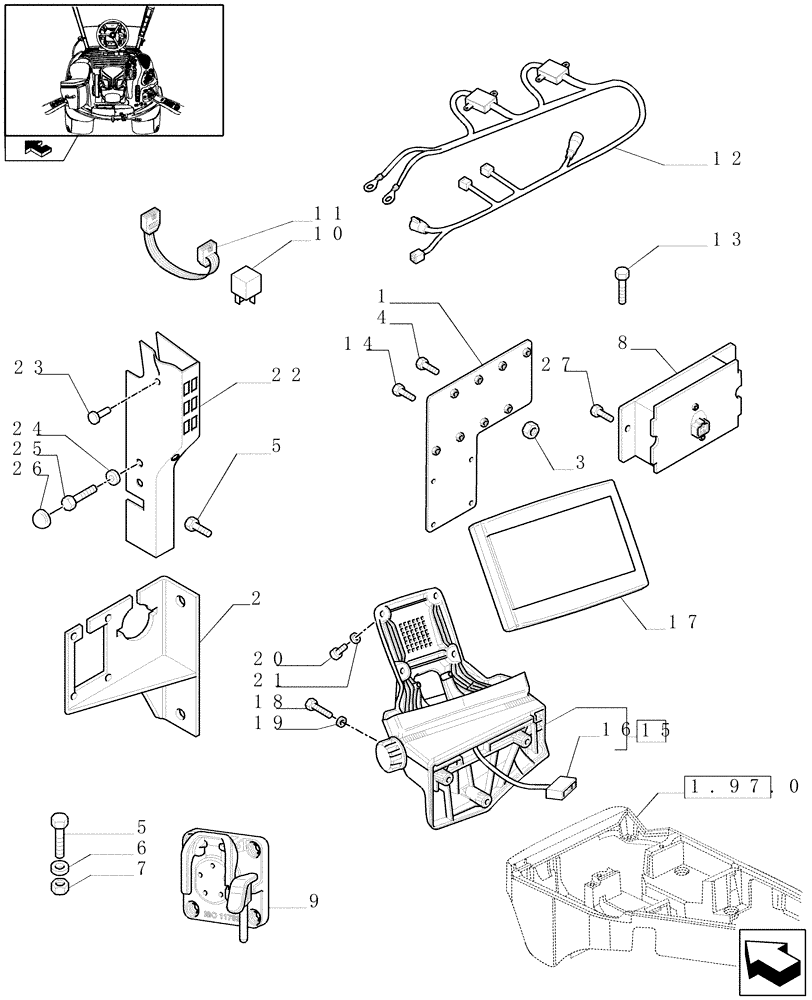

Схема запчастей Case IH PUMA 195 - (1.76.0/02[01]) - (VAR.613) VIRTUAL TERMINAL AFS PRO200 MOUNTED ON IMPLEMENT BRACKET - ISO BUS MOUNTING - C6514 (06) - ELECTRICAL SYSTEMS
1
23
5
22
8
18
4
25
24
19
5
home
1.97.0 01
20
26
12
7
14
17
15
6
27
10
16
11
13
2
21
9
3

Артикул

Название

Примечание

Количество

1

87594470

SUPPORT

1шт.

2

84167089

SUPPORT

1шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

4шт.

4

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

4шт.

5

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

8шт.

6

10571579

LOCK WASHER,M6

5шт.

7

15896211

NUT,M6, Cl 8

5шт.

8

82038683

ELEC. TERMINAL PIN

ELEC CONNECTOR

1шт.

9

87522416

ELEC CONNECTOR,Female, 5 Cavities

Isobus Breakaway

1шт.

10

82017871

RELAY,12V, 20A

2шт.

11

87638191

WIRE HARNESS

Link Lead

1шт.

12

84122016

WIRE HARNESS

Isobus Power

1шт.

13

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

14

83976489

SCREW,Pan, M5 x 20mm, Cl 4.8

M5 x 20

4шт.

15

87725500

HOLDER

1шт.

16

87485778

HARNESS

1шт.

17

84240403

CONTROL MONITOR

1шт.

84486874R

REMAN-ELECT MONITOR

PUMA 165, PUMA 180, PUMA 195, PUMA 210, PUMA 225, All TRACTOR - CVT (11/08-), Reman for New PN 84240403

1шт.

84486874C

CORE-MONITOR

Return Number

1шт.

18

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

19

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

20

13276017

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8, Full Thd

4шт.

21

10519407

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

22

87479488

PADDING

1шт.

23

83998841

STUD,7.85mm OD x 19.50mm L

RH

3шт.

24

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

25

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

M10 x 20

2шт.

26

82012814

CAP,M10

2шт.

27

15645501

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 16mm

2шт.

Выбрано товаров: 29
