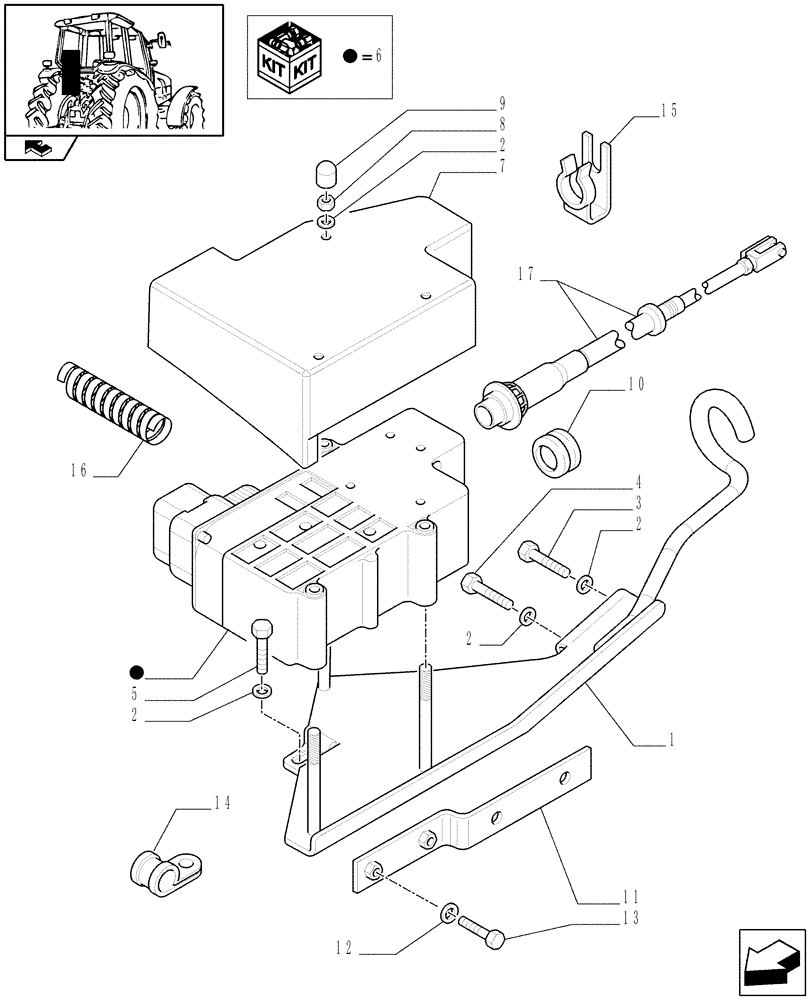

Запчасти Case IH PUMA 195 (1.76.0[05]) - ELECTRONIC PARK LOCK (06) - ELECTRICAL SYSTEMS

1

84121303

BRACKET

, Serial Range: -C6307

1шт.

1

84179407

BRACKET

, Start Serial: D6307

1шт.

2

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

3

16044224

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

4

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

5

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

1шт.

6

87488834

ACTUATOR

, Serial Range: -C6423

1шт.

6

84589406R

REMAN ELECT CONTROL

PUMA 165, PUMA 180, PUMA 195, PUMA 210, PUMA 225, All TRACTOR - CVT, Serial Range: -C6423 (11/08-), Reman for New PN 87488834

1шт.

6

84589406C

CORE-ELECTRONIC CONT

Return Number

1шт.

6

84220606

ACTUATOR

, Serial Range: D6423-C6998

1шт.

6

84589406R

REMAN ELECT CONTROL

PUMA 165, PUMA 180, PUMA 195, PUMA 210, PUMA 225, All TRACTOR - CVT, Serial Range: D6423-C6998 (11/08-), Reman for New PN 84220606

1шт.

6

84589406C

CORE-ELECTRONIC CONT

Return Number

1шт.

6

84361212

ACTUATOR

, Start Serial: D6998

1шт.

6

84589406R

REMAN ELECT CONTROL

PUMA 165, PUMA 180, PUMA 195, PUMA 210, PUMA 225, All TRACTOR - CVT, Start Serial: D6998 (11/08-), Reman for New PN 84361212

1шт.

6

84589406C

CORE-ELECTRONIC CONT

Return Number

1шт.

7

87741153

COVER

1шт.

8

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

3шт.

9

5132136

CAP COVER,M8

M8

3шт.

10

81862738

PLUG,M38 x 28 x 5mm

28MM

1шт.

11

87470673

BRACKET

1шт.

12

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

13

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

14

10450490

CLAMP,16mm, Coat, 9mm Bolt Hole, P Type

, Start Serial: D6307

1шт.

15

84223172

SPRING CLIP,1.1mm Thk

1шт.

16

84195854

SHIELD

1шт.

17

87688220

CABLE

, Serial Range: -C6551

1шт.

17

84226377

CABLE,990mm L

, Start Serial: D6551

1шт.
