Запчасти Case IH PUMA 195 (1.75.9) - INTENDED FOR RADIO INSTALLATION (06) - ELECTRICAL SYSTEMS

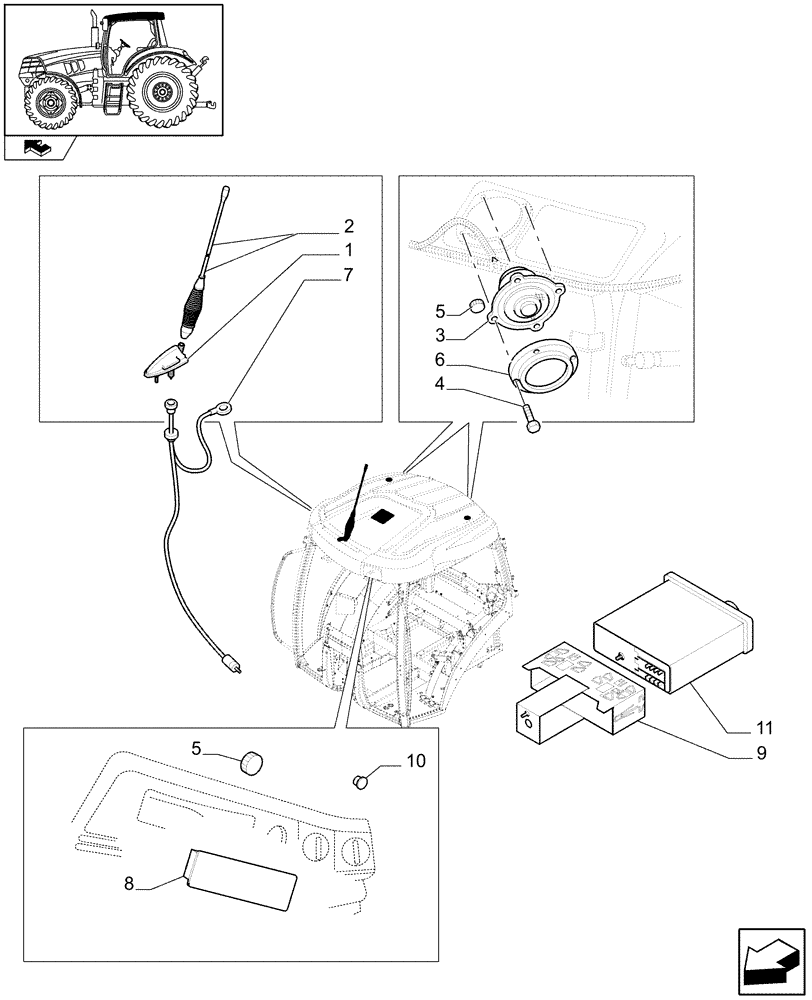

Схема запчастей Case IH PUMA 195 - (1.75.9) - INTENDED FOR RADIO INSTALLATION (06) - ELECTRICAL SYSTEMS
1
3
2
8
7
5
4
home
1
9
5
10
6
1

Артикул

Название

Примечание

Количество

1

84143971

SUPPORT

1шт.

2

87363131

ANTENNA

1шт.

3

87704700

SPEAKER

2шт.

3

87362899

SPEAKER

High Performance

2шт.

With Deluxe Radio and high Performance Speaker, VAR.128-143-190-191

1шт.

4

15644401

SELF-TAP SCREW,Pan Hd, M8 x 25mm

16шт.

5

83935425

SPRING NUT,Prev Torque, #8

17шт.

6

87594895

COVER

Blanking

2шт.

7

82026196

CABLE

Antenna

1шт.

8

82037617

PLATE

1шт.

9

84146470

CASE

Radio case ASSY for Blue Tooth Radio, Serial Range: -C7169

1шт.

With Deluxe Radio and high Performance Speaker, VAR.128-143-190/1-191

1шт.

9

82036161

CASE

Radio Case ASSY

1шт.

9

84485553

MOUNTING PLATE

, Start Serial: D7169

1шт.

With Deluxe Radio and high Performance Speaker, VAR.128-143-190/1-191

1шт.

10

84193578

ADAPTER

3шт.

10

84193577

PLUG

3шт.

11

84399213

RADIO,AM/FM/WB/AUX/BT

, Start Serial: D7169

1шт.

With Deluxe Radio with Bluetooth and High Performance Speaker, VAR190/1-191

1шт.

11

84399209

RADIO,AM/FM/WB/AUX

, Start Serial: D7169

1шт.

With Deluxe Radio and High Performance Speaker, VAR128-143

1шт.

Выбрано товаров: 21
