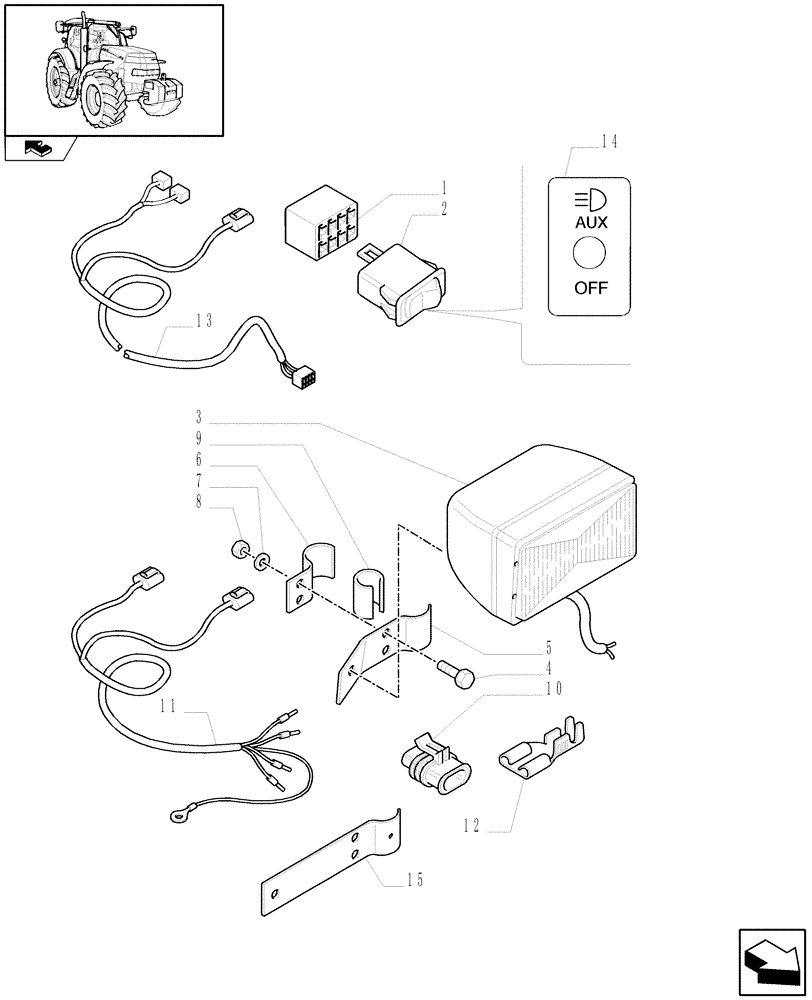

Запчасти Case IH PUMA 195 (1.75.7/04 ) - (VAR.126-127) AUXILIARY LIGHTS KIT (06) - ELECTRICAL SYSTEMS

1

5148448

MULTIPOLE CONNECTOR,Female, 8 Pole

1шт.

2

82029647

SWITCH ASSY

Auxiliary Lights

1шт.

3

82019521

RH HEADLAMP

2шт.

With Right hand drive, VAR.127

1шт.

3

82019850

LH HEADLAMP

2шт.

With Left hand drive, VAR.126

1шт.

4

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

5

82020406

BRACKET

1шт.

5

82020407

BRACKET

1шт.

6

82020408

BRACKET

2шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

8

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

4шт.

9

82019994

PAD

2шт.

10

87680689

ELEC CONNECTOR

2шт.

11

82019667

WIRE HARNESS

1шт.

12

12062644

CABLE TERMINAL

4шт.

13

84167027

WIRE HARNESS

1шт.

14

87663415

DECAL

1шт.

15

87536260

BRACKET

RH

2шт.

With Right hand drive, VAR.127

1шт.
