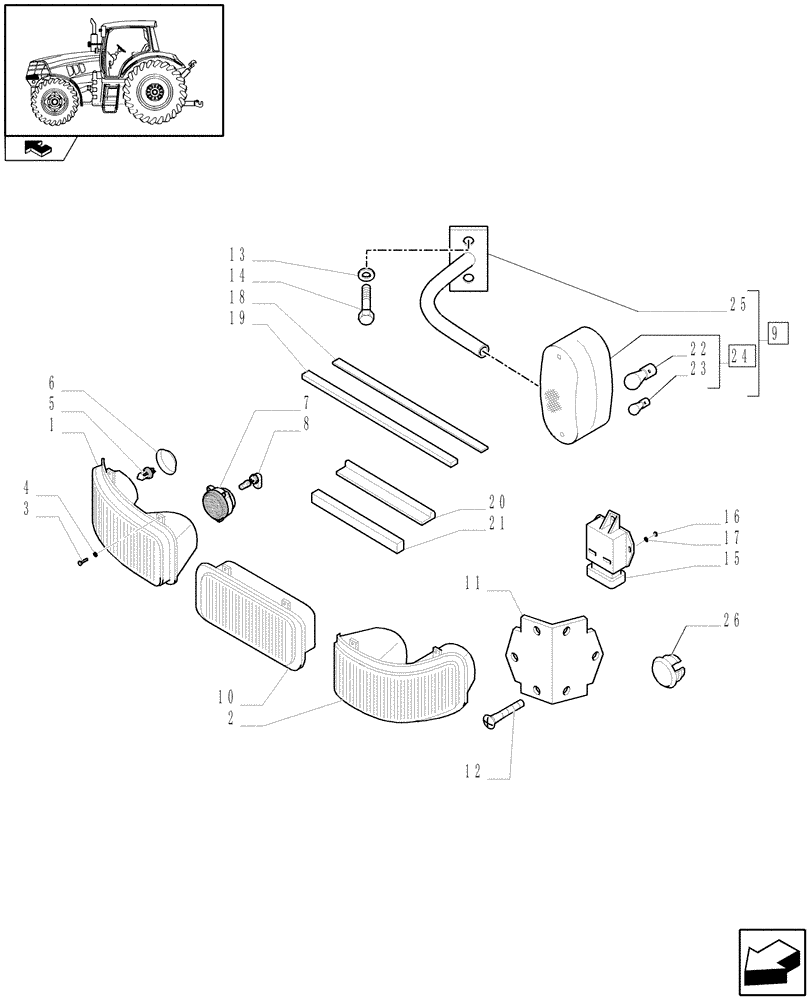

Запчасти Case IH PUMA 195 (1.75.6[01]) - HEADLAMPS - INDICATORS (06) - ELECTRICAL SYSTEMS

1

87455683

HEADLAMP

RH, Incl. 5-8

1шт.

With LH Dip 2 Work Lights, VAR.760

1шт.

1

87455685

HEADLAMP,12V, Clear

RH, Incl. 5-8

1шт.

1

87308991

HEADLAMP

RH

1шт.

With NA Head Lamp RH Dip with 2 Work Lights, VAR.694

1шт.

Valid for VAR.100

1шт.

CVT Models only

1шт.

2

87455684

HEADLAMP,12V, Clear

LH, Incl. 5-8

1шт.

2

87455682

HEADLAMP

LH, Incl. 5-8

1шт.

With LH Dip 2 Work Lights, VAR.760

1шт.

2

87308990

HEADLAMP

LH

1шт.

With NA Head Lamp RH Dip with 2 Work Lights, VAR.694

1шт.

Valid for VAR.100

1шт.

CVT Models only

1шт.

3

81870066

SCREW,Torx, Pan HD, M6 x 12mm, Cl 8.8

12шт.

4

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

12шт.

5

87283179

BULB,H4, 12V, 60/55W

12V - 60/55W

2шт.

6

87314918

COVER

2шт.

7

87314917

LAMP

2шт.

8

82004449

BULB,Halogen, 12V, 50W

2шт.

9

87313269

SIDE LAMP ASSY

RH

1шт.

9

87313268

SIDE LAMP ASSY

LH

1шт.

9

87313282

SIDE LAMP ASSY

LH

1шт.

For European 3M Highway Regulations, VAR.669

1шт.

9

87313281

SIDE LAMP ASSY

RH

1шт.

For European 3M Highway Regulations, VAR.669

1шт.

10

87455686

COVER

1шт.

11

87520630

BRACKET

2шт.

12

87316148

SELF-TAP SCREW

10шт.

13

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

14

84188431

SCREW,Pan HD, M8 x 25mm, Cl 8.8

4шт.

15

87577636

FLASHER UNIT

1шт.

15

82038684

FLASHER UNIT

1шт.

CVT Models only

1шт.

For NA Version, VAR.007

1шт.

16

15896211

NUT,M6, Cl 8

2шт.

17

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

18

87640787

RUBBER SEAL,20mm W x 935mm L x 3mm Thk

Top

1шт.

19

87640788

SEALING STRIP,20mm W x 990mm L x 3mm Thk

Bottom

1шт.

20

87640789

SEALING STRIP,20mm W x 350mm L x 7.8mm Thk

Side

2шт.

21

87640790

SEAL

Thick

2шт.

22

14148090

BULB,PY21W, 12V, 21W

12V-21W

2шт.

23

10857790

BULB,R10W, 12V, 5W

2шт.

24

87304547

SIDE LAMP ASSY,12V, 21W

RH

1шт.

24

87304549

SIDE LAMP ASSY,12V, 21W

LH

1шт.

25

82037611

SUPPORT

RH

1шт.

25

82037613

SUPPORT

LH

1шт.

25

82038911

SUPPORT

LH

1шт.

For European 3M Highway Regulations, VAR.669

1шт.

25

82038910

SUPPORT

RH

1шт.

For European 3M Highway Regulations, VAR.669

1шт.

26

82037605

PLUG,11.5mm ID

6шт.

CVT Models only

1шт.

For NA Version, VAR.007

1шт.
