Запчасти Case IH PUMA 195 (1.75.4/11) - (VAR.187-636) FAST STEERING - SUPPORT FOR RELAY BOX, RELAY, POWER SOCKET AND SWITCHES (06) - ELECTRICAL SYSTEMS

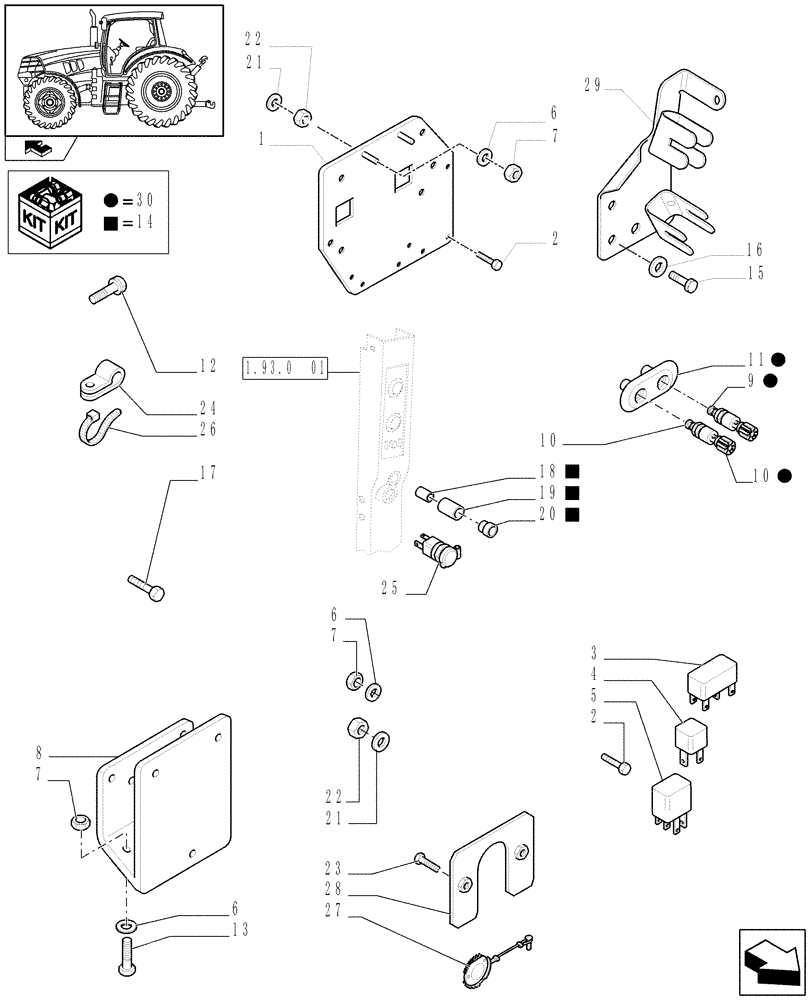

Схема запчастей Case IH PUMA 195 - (1.75.4/11) - (VAR.187-636) FAST STEERING - SUPPORT FOR RELAY BOX, RELAY, POWER SOCKET AND SWITCHES (06) - ELECTRICAL SYSTEMS
3
6
2
25
14
1
8
18
23
1.93.0 01
28
7
30
6
24
10
9
11
6
15
10
7
7
1
16
1
21
1
home
1
1
2
26
22
21
5
19
1
22
20
1
29
17
4
27
1
13
12

Артикул

Название

Примечание

Количество

1

87325625

SUPPORT

1шт.

2

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

7шт.

3

87304226

RELAY,12V, Combined, Black

1шт.

4

82013124

RELAY,12V, 30A

5шт.

4

82030798

RELAY,12V, 70A

2шт.

5

82023238

RELAY,12V, 20A

6шт.

6

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

12шт.

7

15896211

NUT,M6, Cl 8

12шт.

8

87314581

BRACKET

1шт.

9

82003172

TERMINAL CONNECTOR

1шт.

10

82003171

TERMINAL CONNECTOR

1шт.

11

82003173

BEZEL

1шт.

12

83929012

CAPTIVE WASHER SCREW,HWH, M6.3 x 1.8 x 20mm

2шт.

13

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

14

5148077

CIGARETTE LIGHTER

Incl. 18, 19, 20

1шт.

15

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

3шт.

16

14496404

WASHER,M6 x 12 x 2 Thk

3шт.

17

83912337

SELF-TAP SCREW,3.5mm OD x 1.3mm Thd x 22mm L

2шт.

18

5148133

CIGARETTE LIGHTER

1шт.

19

5148132

LAMP SOCKET

1шт.

20

5148131

HOUSING

1шт.

21

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

22

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

6шт.

23

83976489

SCREW,Pan, M5 x 20mm, Cl 4.8

2шт.

24

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

26MM

1шт.

25

84191453

SOCKET,12/24V, 20A

1шт.

26

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

3шт.

26

14560287

CABLE TIE,207.00mm L

COLLAR

3шт.

27

87316393

CAP

1шт.

28

87313993

HOLDER

1шт.

29

87597230

SUPPORT

1шт.

30

84266120

SOCKET,12V

1шт.

Выбрано товаров: 32
