Запчасти Case IH PUMA 195 (1.75.1/10) - (VAR.331-341-348) VIRTUAL TERMINAL ASF PRO300 MOUNTED ON ARMREST (06) - ELECTRICAL SYSTEMS

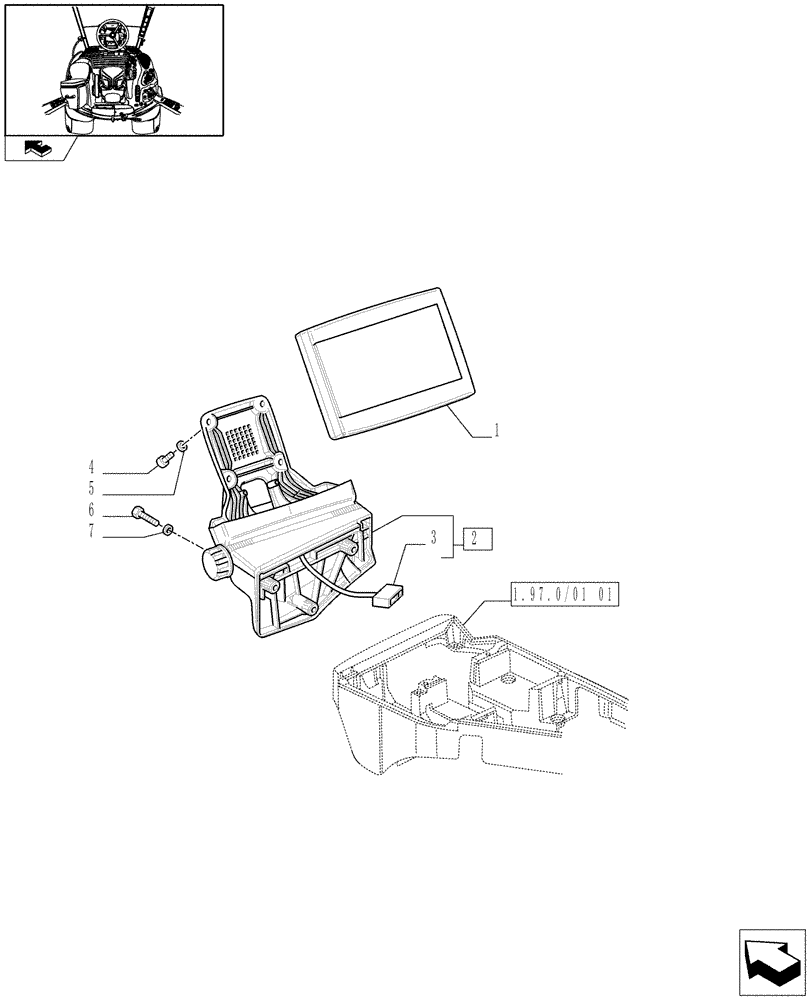

Схема запчастей Case IH PUMA 195 - (1.75.1/10) - (VAR.331-341-348) VIRTUAL TERMINAL ASF PRO300 MOUNTED ON ARMREST (06) - ELECTRICAL SYSTEMS
6
1
1.97.0/01 01
2
5
4
home
7
3

Артикул

Название

Примечание

Количество

1

84240403

CONTROL MONITOR

, Serial Range: -C6990

1шт.

84486874R

REMAN-ELECT MONITOR

PUMA 165, PUMA 180, PUMA 195, PUMA 210, PUMA 225, All TRACTOR - CVT Serial Range: -C6990 (11/08-), Reman for New PN 84240403

1шт.

84486874C

CORE-MONITOR

Return Number

1шт.

1

84296834

CONTROL MONITOR

, Serial Range: D6990-C7001

1шт.

1

84410268

CONTROL MONITOR

, Serial Range: D7001-C7136

1шт.

84486874R

REMAN-ELECT MONITOR

PUMA 165, PUMA 180, PUMA 195, PUMA 210, PUMA 225, All TRACTOR - CVT Start Serial: D7001 (11/08-), Reman for New PN 84410268

1шт.

84486874C

CORE-MONITOR

Return Number

1шт.

1

84481933

CONTROL MONITOR

, Start Serial: D7136

1шт.

1

84481933R

REMAN-ELECT MONITOR

Reman for New PN 84481933

1шт.

1

84481933C

CORE-MONITOR

Return Number

1шт.

2

87725500

HOLDER

1шт.

Only with VAR.331-348

1шт.

3

84194120

HARNESS

1шт.

Only with VAR.331-348

1шт.

4

13276017

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8, Full Thd

4шт.

Only with VAR.331-348

1шт.

5

10519407

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

Only with VAR.331-348

1шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

Only with VAR.331-348

1шт.

7

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

Only with VAR.331-348

1шт.

Выбрано товаров: 22
