Запчасти Case IH PUMA 195 (1.75.1/08) - (VAR.088-089/2-090-091) FRONT HPL - SWITCHES AND RELATED PARTS (06) - ELECTRICAL SYSTEMS

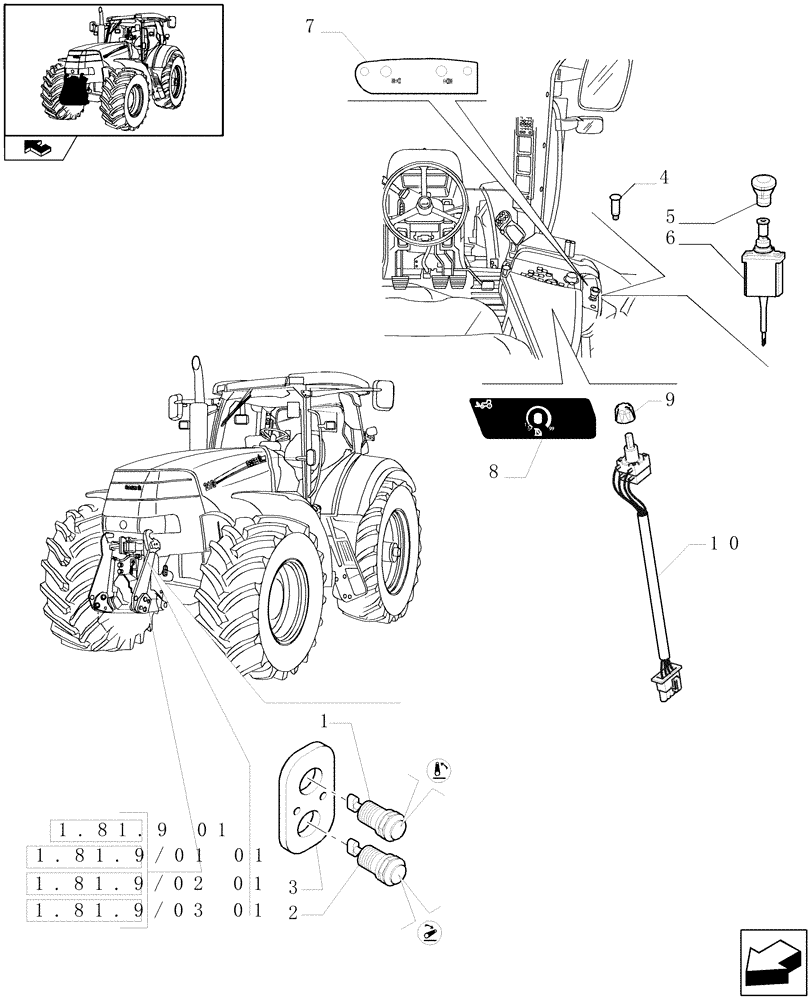

Схема запчастей Case IH PUMA 195 - (1.75.1/08) - (VAR.088-089/2-090-091) FRONT HPL - SWITCHES AND RELATED PARTS (06) - ELECTRICAL SYSTEMS
6
4
10
1
8
7
1.81.9 01
home
1.81.9/01 01
1.81.9/03 01
9
1.81.9/02 01
2
5
3

Артикул

Название

Примечание

Количество

1

87339136

SWITCH ASSY

Front Hitch Raise, External LH

1шт.

With Front HPL, VAR.088-089/2-090-091

1шт.

2

87339137

SWITCH ASSY

Front Hitch Lower, External RH

1шт.

With Front HPL, VAR.088-089/2-090-091

1шт.

3

87348408

MOUNTING PARTS

1шт.

With Front HPL, VAR.088-089/2-090-091

1шт.

4

47056319

WARNING LIGHT

Yellow

1шт.

With Front HPL with PTO, VAR.089/2-091

1шт.

5

87638633

KNOB

Yellow

1шт.

With Front HPL with PTO, VAR.089/2-091

1шт.

6

84218194

SWITCH ASSY

1шт.

With Front HPL with PTO, VAR.089/2-091

1шт.

7

87725492

DECAL

1шт.

With Front HPL with PTO, VAR.089/2-091

1шт.

8

84239344

DECAL

1шт.

With Front HPL, VAR.088-089/2-090-091

1шт.

9

87584684

KNOB

1шт.

With Front HPL, VAR.088-089/2-090-091

1шт.

10

84213268

POTENTIOMETER

1шт.

With Front HPL, VAR.088-089/2-090-091

1шт.

Выбрано товаров: 20
