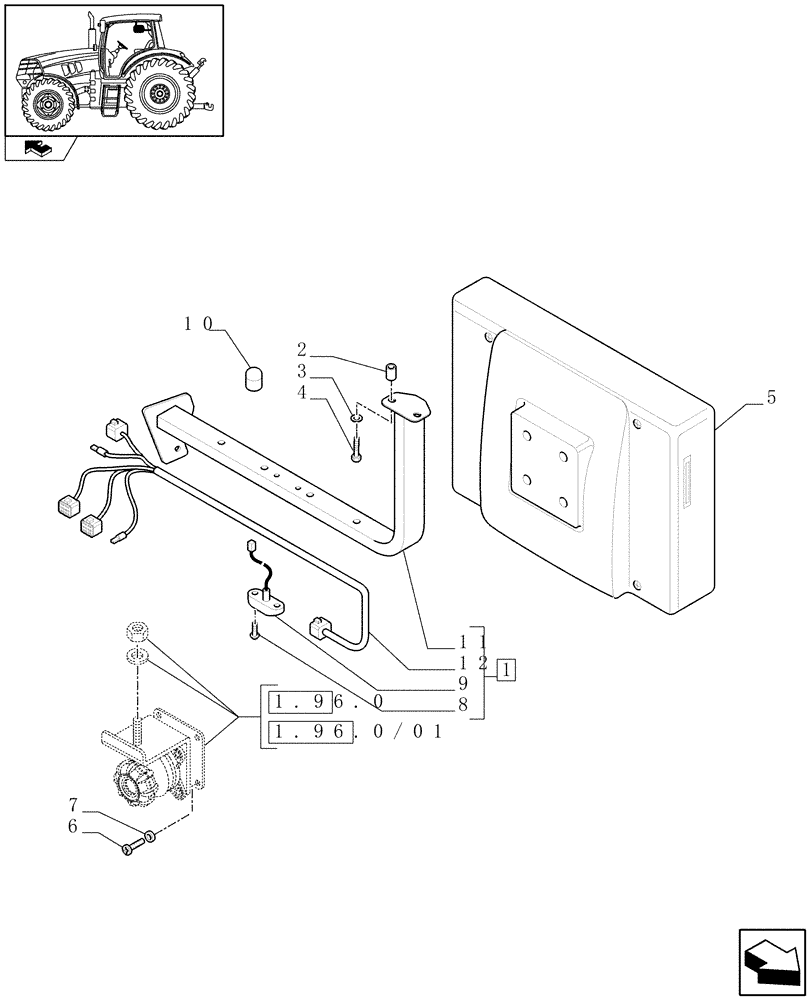

Запчасти Case IH PUMA 195 (1.75.1/05) - (VAR.012-131/1) VIRTUAL TERMINAL AFS PRO600 (06) - ELECTRICAL SYSTEMS

1

87700864

WIRE HARNESS

ASSY, Support With Harness

1шт.

2

87681589

SPACER,8mm ID x 11mm OD x 16mm L

2шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

4

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

4

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

5

87668597

CONTROL MONITOR

1шт.

Virtual Terminal on Implement Bracket, VAR.012

1шт.

5

87385125R

REMAN-ELECT MONITOR

Puma 165 CVT, Puma 180 CVT, Puma 195 CVT, Puma 210 CVT, Puma 225 CVT, Reman For New P/N 87668597

1шт.

5

87385125C

CORE-MONITOR

Return Part Number

1шт.

5

84604338R

REMAN-ELECT MONITOR

Puma 165, Puma 165 CVX, Puma 180 CVT, Puma CVX, Puma CVX, Puma CVT, Puma 210 CVX, Puma 210 CVT, Puma CVX, Puma CVT, Reman for New P/N 87668597

1шт.

5

84604338C

CORE-MONITOR

Return Part Number

1шт.

6

13276017

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8, Full Thd

4шт.

7

10519407

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

8

86511823

SCREW,Phillips Drive, Pan HD, M4 x 8mm, Cl 4.8

2шт.

9

87565290

LAMP

1шт.

10

5132136

CAP COVER,M8

2шт.

11

87553422

SUPPORT

1шт.

12

87700862

WIRE HARNESS

1шт.
