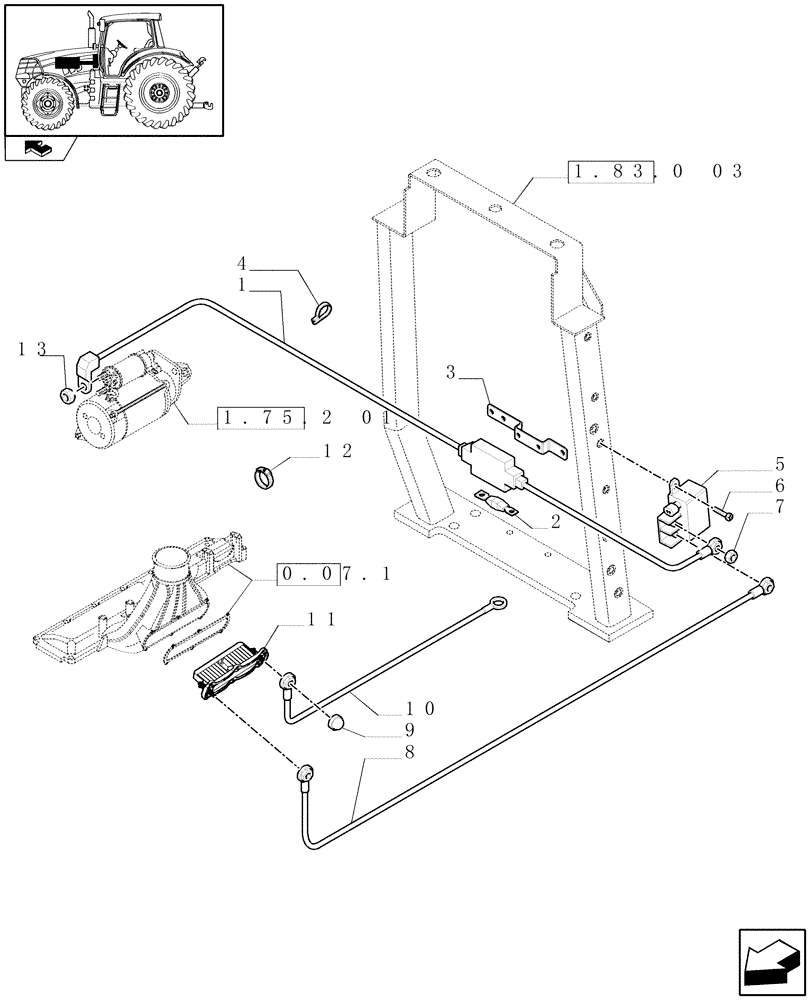

Запчасти Case IH PUMA 195 (1.75.0/04) - (VAR.203) GRID HEATER (06) - ELECTRICAL SYSTEMS

1

82036889

WIRE HARNESS

Grid Heater, Incl. 2, Serial Range: -C6495

1шт.

1

84243701

WIRE HARNESS

Grid Heater, Incl. 2, Start Serial: D6495

1шт.

2

11056290

FUSE,125A, Maxi

125 AMP

1шт.

3

87570805

BRACKET

1шт.

4

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

5

82022813

RELAY,12V, High Current

1шт.

6

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

2шт.

7

12574211

NUT,M6 x 1, Cl 8

2шт.

8

82036464

ELECTRIC CABLE,650mm L

1шт.

9

87533425

COVER,M6

M6

4шт.

10

87316233

ELECTRIC CABLE

1шт.

11

2854837

HEATER

1шт.

12

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

2шт.

13

15896211

NUT,M6, Cl 8

1шт.
