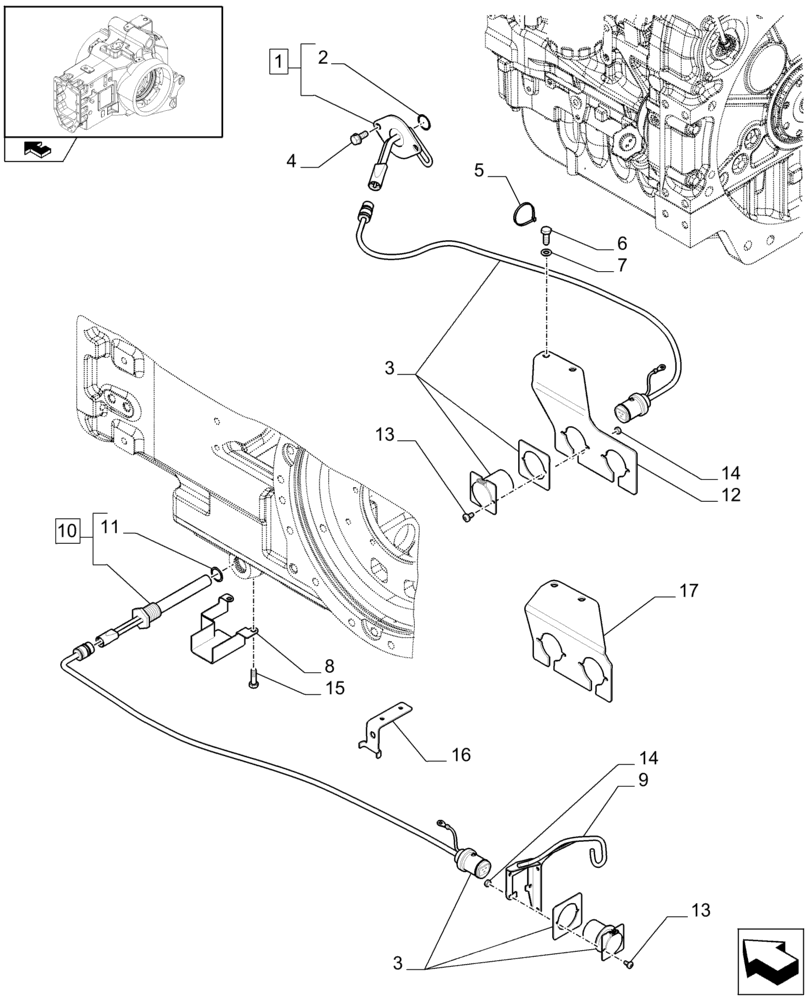

Запчасти Case IH PUMA 195 (1.75.0/03[01A]) - (VAR.355-382) (240V) ENGINE BLOCK AND TRANSMISSION OIL HEATERS - D7339 (06) - ELECTRICAL SYSTEMS

1

87756078

HEATER,240V

ASSY

1шт.

2

4891258

O-RING,1.984" ID x 2.262" OD x 0.139"

1шт.

3

84397509

ELECTRIC CABLE

2шт.

4

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

5

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

2шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

7

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

8

84162403

GUARD

1шт.

9

84384570

SUPPORT

1шт.

10

82030789

HEATER,240V

ASSY

1шт.

11

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

12

84305836

SUPPORT

, Serial Range: -C7339

1шт.

13

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

4шт.

14

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

15

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

1шт.

16

87633005

BRACKET

1шт.

17

47390802

SUPPORT

, Start Serial: D7339

1шт.
