Запчасти Case IH PUMA 195 (1.75.0/02[01]) - (VAR.381) (120V) ENGINE BLOCK AND TRANSMISSION OIL HEATERS - C7114 (06) - ELECTRICAL SYSTEMS

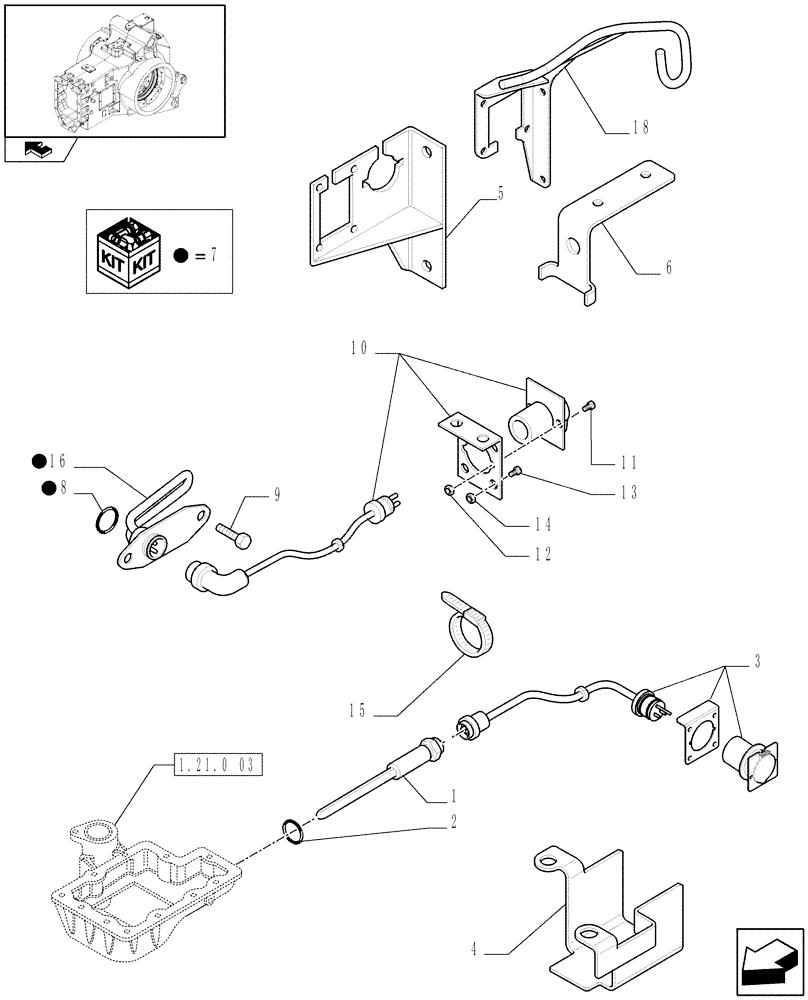

Схема запчастей Case IH PUMA 195 - (1.75.0/02[01]) - (VAR.381) (120V) ENGINE BLOCK AND TRANSMISSION OIL HEATERS - C7114 (06) - ELECTRICAL SYSTEMS
10
1.21.0 03
home
7
12
9
7
7
2
18
4
1
7
6
13
3
15
16
14
8
5
11

Артикул

Название

Примечание

Количество

1

84130678

HEATER,110V

Trasmission Oil, 110V

1шт.

2

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

116V

1шт.

3

84130687

ELECTRIC CABLE

1шт.

4

84162403

GUARD

1шт.

5

84167089

SUPPORT

, Serial Range: -C7019

1шт.

6

87633005

BRACKET

1шт.

7

4891287

HEATER

Engine Block, 120V

1шт.

8

4891258

O-RING,1.984" ID x 2.262" OD x 0.139"

1шт.

9

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

10

87756876

ELECTRIC CABLE

1шт.

11

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

4шт.

12

10794011

NUT,M4, Cl 8

4шт.

13

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

2шт.

14

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

15

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

2шт.

16

4891249

BLOCK HEATER

1шт.

17

84163038

SUPPORT

Art Not Available

1шт.

18

84384570

SUPPORT

, Start Serial: D7019

1шт.

Выбрано товаров: 18
