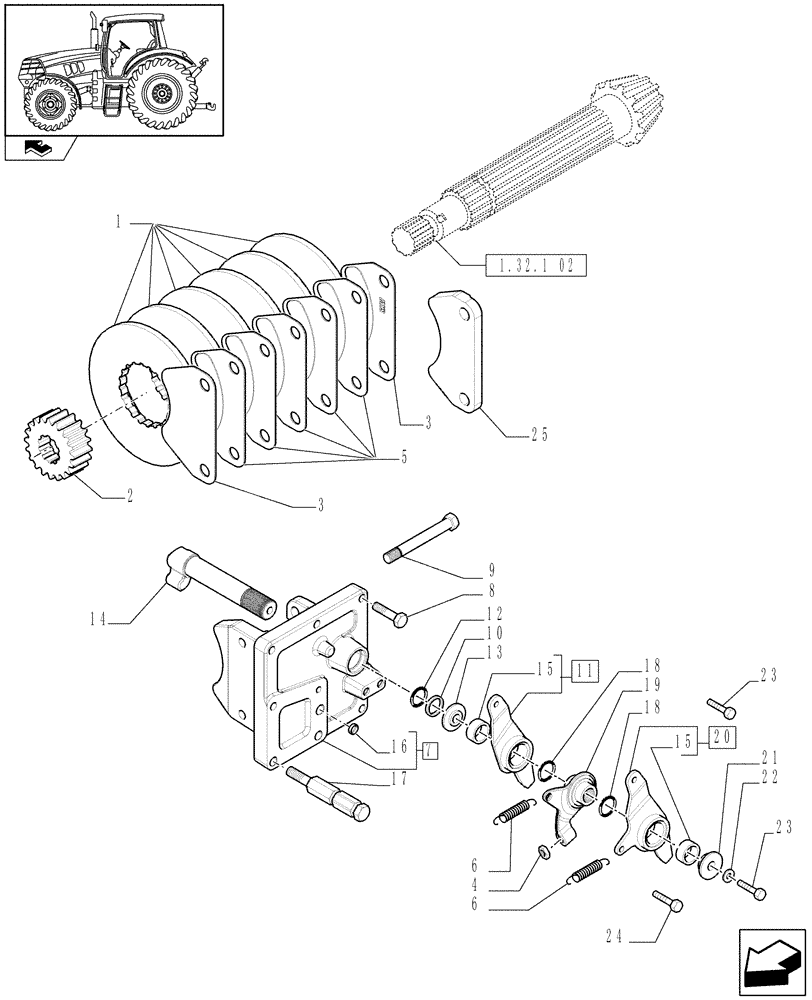

Запчасти Case IH PUMA 195 (1.65.5) - PARKING BRAKE (05) - REAR AXLE

1

5196708

BRAKE DISC

6шт.

2

5195109

GEAR

1шт.

3

5196712

BRAKE PAD,3.1mm Thk

2шт.

4

10791414

THIN NUT,M16 x 1.5

1шт.

5

5196706

BRAKE PAD,4.2mm Thk

5шт.

6

5127295

SPRING,Extension, 24mm OD x 100mm L

2шт.

7

87302462

SUPPORT

1шт.

8

14307724

HEX SOC SCREW,M10 x 1.25 x 40mm, Cl 8.8, Full Thd

7шт.

9

84152439

SET SCREW,M14 x 1.5 x 16mm, Class 8.8

2шт.

10

5198146

SHIM,28.1mm ID x 31.9mm OD x 4mm Thk

1шт.

11

87689320

BRAKE LEVER

EPL

1шт.

12

14458080

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1шт.

13

87689269

SHIM,28mm ID x 59mm OD x 3.7mm Thk

1шт.

14

87740212

LEVER

1шт.

15

87689278

BUSHING,40mm ID x 44mm OD x 20mm L

1шт.

16

14328401

PLUG,M14, Tapered

1шт.

17

87689276

RETAINER

3шт.

18

14455080

O-RING,50.52mm ID x 1.78mm

4шт.

19

87689271

HUB

2шт.

20

87689319

BRAKE LEVER

Parking Brake

1шт.

21

87689270

SHIM,12.5mm ID x 59mm OD x 6.7mm Thk

1шт.

22

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

23

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

24

87741803

SET SCREW,Hex, M16 x 1.25 x 70mm

1шт.

25

84152436

BRAKE SHOE

1шт.
