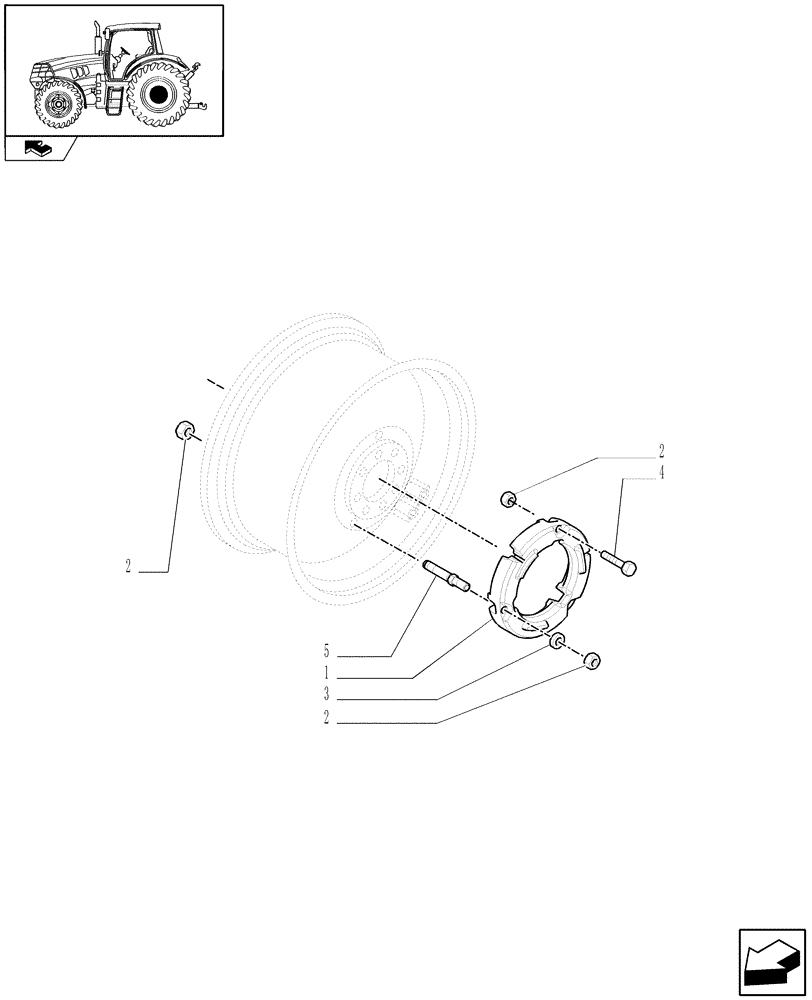

Запчасти Case IH PUMA 195 (1.49.7) - (VAR.010-011) REAR BALLAST - 182 AND 364 KG (05) - REAR AXLE

1

405828A1

WHEEL WEIGHT

(KG.91)

1шт.

Q.ty=2 with Air brake guard for standard axels, VAR.010. Q.ty=4 with 4 x 90 kg rear ballast adaptation rings mounted on inner and outer side of rear wheels, VAR.011

1шт.

2

10790524

NUT,M16 x 1.5

1шт.

Q.ty=12 With 2 Weights, VAR.010. Q.ty=18 With 4 Weights, VAR.011

1шт.

3

83924746

WASHER,17mm ID x 40mm OD x 5mm Thk

16x40x5

1шт.

Q.ty=6 with 2 Weights, VAR.010. Q.ty=18 with 4 Weights, VAR.011

1шт.

4

15982334

BOLT,Hex, M16 x 1.5 x 150mm, Cl 10.9

6шт.

With 4 Weights only, VAR.011

1шт.

5

87688991

STUD,M16 x 1.5

6шт.
