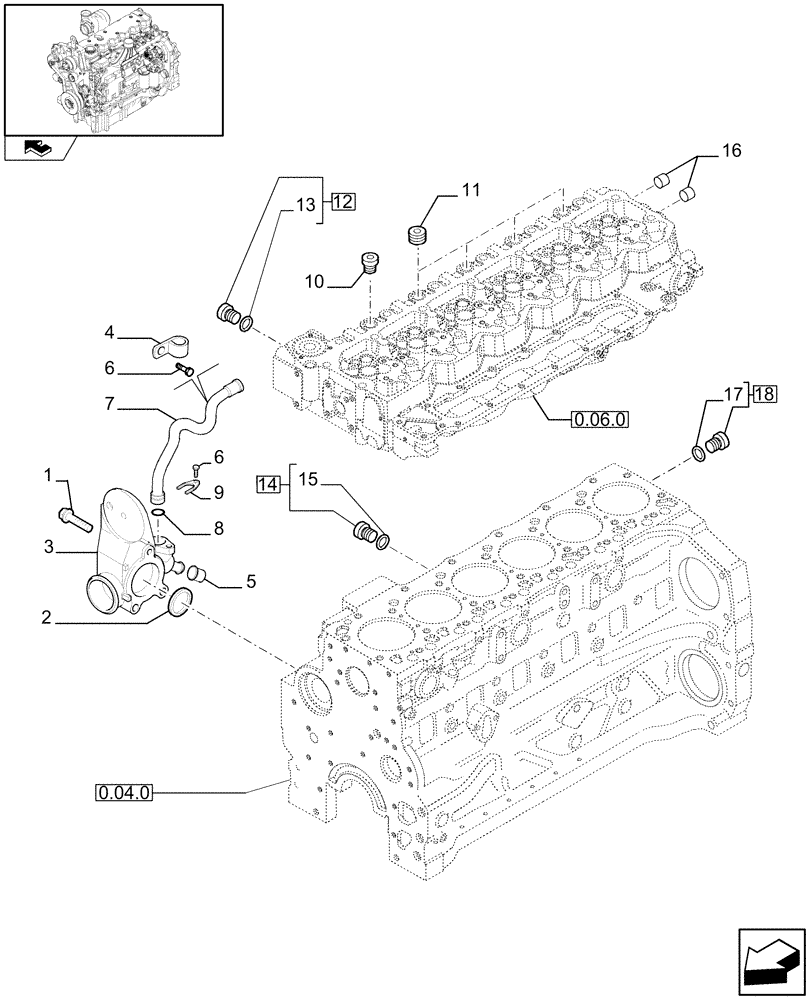

Запчасти Case IH PUMA 180 (0.32.3) - ENGINE COOLING SYSTEM PIPING (01) - ENGINE

1

4895174

SCREW,Flg Hd, M10 x 1.5 x 65

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2854840

MANIFOLD

1шт.

4

2854845

COLLAR CLAMP

1шт.

5

NS

NOT SERVICED

1шт.

6

4895164

SCREW,Hex, Flg Hd, M6 x 16

2шт.

7

2854841

TUBE

1шт.

8

2853563

O-RING,20.29mm ID x 2.62mm

1шт.

9

2853564

BRACKET

1шт.

10

2854491

PLUG,Taper Pipe, Hex, 1/4" - 18 x 14.224mm

1шт.

11

4895078

PIPE PLUG,1/2"-14

4шт.

12

4895080

HEX SOCKET PLUG,M22 x 1.5

- Assy

1шт.

13

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

14

4895392

HEX SOCKET PLUG,M18 x 1.5

- Assy

1шт.

15

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

16

4893036

PIPE PLUG,3/4"-14 NPTF

2шт.

17

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

18

4895623

HEX SOCKET PLUG,M16 x 1.5

- Assy

1шт.
