Запчасти Case IH PUMA 180 (0.01.1[01]) - INITIAL STOCKING LIST (ISL) FOR N.A. ONLY (00) - GENERAL

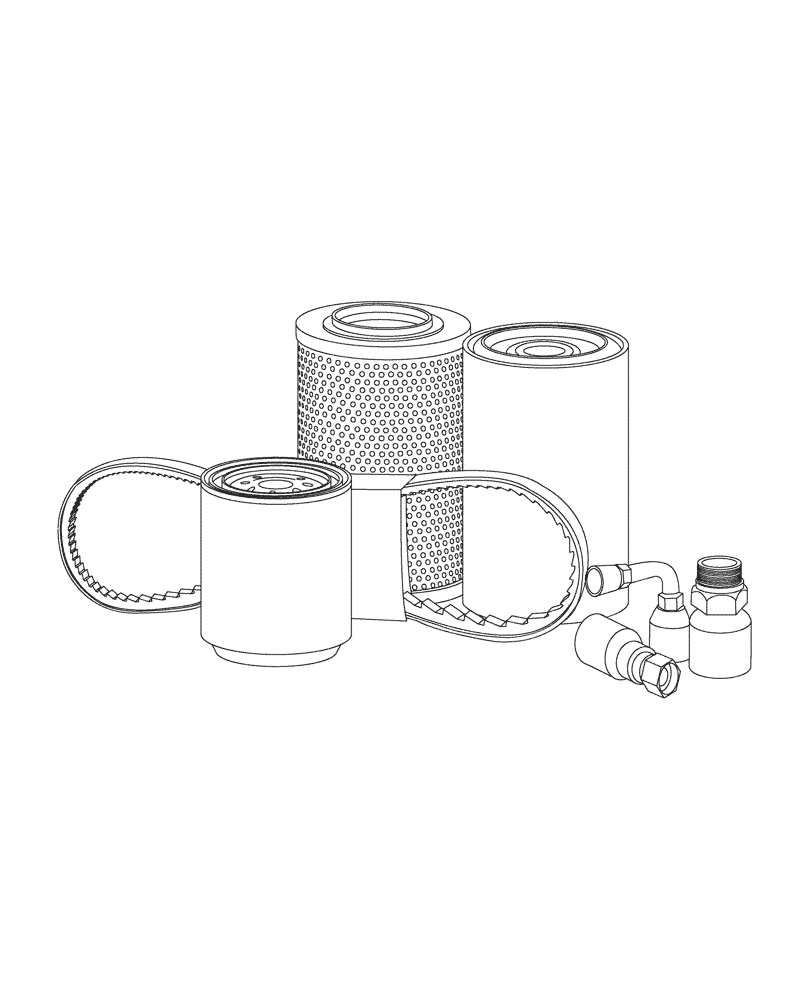

Схема запчастей Case IH PUMA 180 - (0.01.1[01]) - INITIAL STOCKING LIST (ISL) FOR N.A. ONLY (00) - GENERAL

Артикул

Название

Примечание

Количество

LIST A

Parts Required for Preventative Maintenance

1шт.

1

87517153

AIR FILTER,142.3mm ID x 150.9mm OD x 258mm L

Engine, Cleaner Safety

1шт.

2

87517154

AIR FILTER,281.6mm ID x 284.4mm OD x 319mm L

Engine, Cleaner Primary

1шт.

3

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Recirculation

1шт.

4

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

1шт.

5

87309516

CAB FILTER,Carbon

Fresh Air Carbon (If Used)

1шт.

6

87592298

FILTER ASSY

Biodiesel Compatible, Serial Range: -C6809

1шт.

6

84328562

FILTER ASSY,40mm OD x 109mm L, M14 x 1.5, 350 Microns

, Start Serial: D6809

1шт.

7

87722692

FUEL FILTER

Bio-Diesel (Case)

1шт.

8

47617638

FILTER

1шт.

Include Cover Gasket

1шт.

9

87638772

CARTRIDGE,165mm L

Dryer Reservoir Air Brake

1шт.

10

87707945

HYDRAULIC OIL FILTER

Pressure Spin-On

1шт.

11

87707947

HYDRAULIC OIL FILTER

Pressure Spin-On

1шт.

12

2854750

ENGINE OIL FILTER

1шт.

13

87803182

FUEL FILTER

Case

1шт.

14

87301964

V-BELT,35.40 mm W x 2562.00 mm L

Engine

1шт.

LIST B

Parts Required for Preventative Maintenance And Basic Repair

1шт.

15

5138819

INDICATOR

A/F Safety Switch

1шт.

15

336430A1

FUEL FILTER

30 Microns, Water Separator

1шт.

Valid with Heavy Duty Fuel Filter, Var.414

1шт.

16

4894139

PLUG,Hex Soc, M22 x 1.5

Engine (3 Per Unit)

3шт.

17

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

Engine, Drain Plug (3 Per Unit)

3шт.

18

2858050

THERMOSTAT,60.8mm OD

1шт.

19

2853552

SENSOR

Speed, Engine

1шт.

20

4897224

SENSOR

Fuel Temperature

1шт.

21

4890193

SENSOR

Engine Temperature

1шт.

22

87699591

SWITCH ASSY

A/C Trinary

1шт.

23

87564761

SENSOR

Speed Inductive

1шт.

24

87564756

SENSOR

Speed Inductive

1шт.

25

87395493

PRESSURE SWITCH

Assy, Oil

1шт.

26

82008236

SWITCH ASSY

Transmission Oil, 51MM L

1шт.

27

87384755

SWITCH ASSY

Trailer Brake - If Used

1шт.

28

87564379

SENSOR

Air Brake Pressure - If Used

1шт.

29

82017871

RELAY,12V, 20A

Omron

1шт.

30

87283179

BULB,H4, 12V, 60/55W

2шт.

31

139119A1

BULB,#886, 12V, 50W

Worklamp (From 82004449)

2шт.

32

14148090

BULB,PY21W, 12V, 21W

Single Filament PY21W

2шт.

33

44995162

BULB,T-3 1/4, 12.8V, 50W

Ge 885, 12V/50W

2шт.

34

83990084

RELAY

40 Amp

1шт.

35

83990024

RELAY

Trailer Brake Valve - If Used

1шт.

36

87561528

SWITCH ASSY

1шт.

37

82030144

IGNITION KEY

1шт.

38

9847313

BULB,#894, 12V, 37.5W

12V (37W, Halogen)

2шт.

39

529068

BULB,#1156, 12V, 21W

2шт.

40

81867061

BULB,12V, 21W

License Plate, Type R19/10 10W

2шт.

41

82004463

RELAY,12V, 30A

Ignition Load

1шт.

42

82033971

FUSE,100A, Maxi, Violet

1шт.

43

84183837

FUSE,80A, Maxil, Natural

80 Amp

1шт.

44

5190333

FUSE,40A, Maxi, Orange

2шт.

45

5173264

FUSE,30A, Maxi, Green

2шт.

46

82023238

RELAY,12V, 20A

Omron

1шт.

47

10401290

FUSE,25 amp Mini

2шт.

48

10402190

FUSE,30A, Mini

2шт.

49

10401190

FUSE,20A, Mini, Yellow

2шт.

50

87524877

FUSE,15A, Mini, Blue

50 Amp

2шт.

51

87522597

FUSE,10A, Mini, Red

2шт.

52

87522595

FUSE,7.5A, Mini, Brown

50 Amp

2шт.

53

10395890

FUSE,5A, Mini, Beige

2шт.

54

10395690

FUSE,3A, Mini, Violet

3.5 Amp

2шт.

55

82011380

RELAY

Intermitent Wiper Front

1шт.

56

82011381

MODULE

Intermitent Wiper Rear

1шт.

57

82013124

RELAY,12V, 30A

Power (30 Amp Sealed)

1шт.

58

82030798

RELAY,12V, 70A

Mini Iso

1шт.

59

14143790

BULB,12V, 1.2W

1шт.

60

14144690

BULB,P21/5W, 12V, 21/5W

2 Filament

2шт.

61

529068

BULB,#1156, 12V, 21W

Turn Light Indicator

2шт.

62

10857790

BULB,R10W, 12V, 5W

Tail

2шт.

63

14151590

BULB,H3, 12V, 55W

Halogen Worklights

1шт.

64

87373529

FLASHER UNIT

ISO

1шт.

65

82038684

FLASHER UNIT

NASO

1шт.

66

E35556

BULB,12V, 10W

Dome

1шт.

67

82003147

BULB,Festoon C11, 12V, 10W

Dome

1шт.

68

14149590

BULB,12V, 10W

2шт.

69

83982680

RELAY

Turn Signal Converter (Iso)

1шт.

70

87745842

PRESSURE SWITCH

Engine Oil

1шт.

71

83990086

RELAY,Mini, 12V, 20A

Work Lamps

1шт.

72

87364942

PARK BRAKE SWITCH

1шт.

73

86616248

BULB,H1, 12V, 55W

Beacon Light

1шт.

74

82026949

PUSH BUTTON SWITCH

Brake Indicator

1шт.

75

82003697

RELAY,12V, 30A

Ignition Load

1шт.

76

82028134

SWITCH ASSY

Oil

1шт.

77

82025340

RESTRICTION SWITCH

Vacuum

1шт.

78

87564684

SWITCH ASSY

Oil

1шт.

79

82036589

SENSOR

PTO Speed

1шт.

Выбрано товаров: 85
