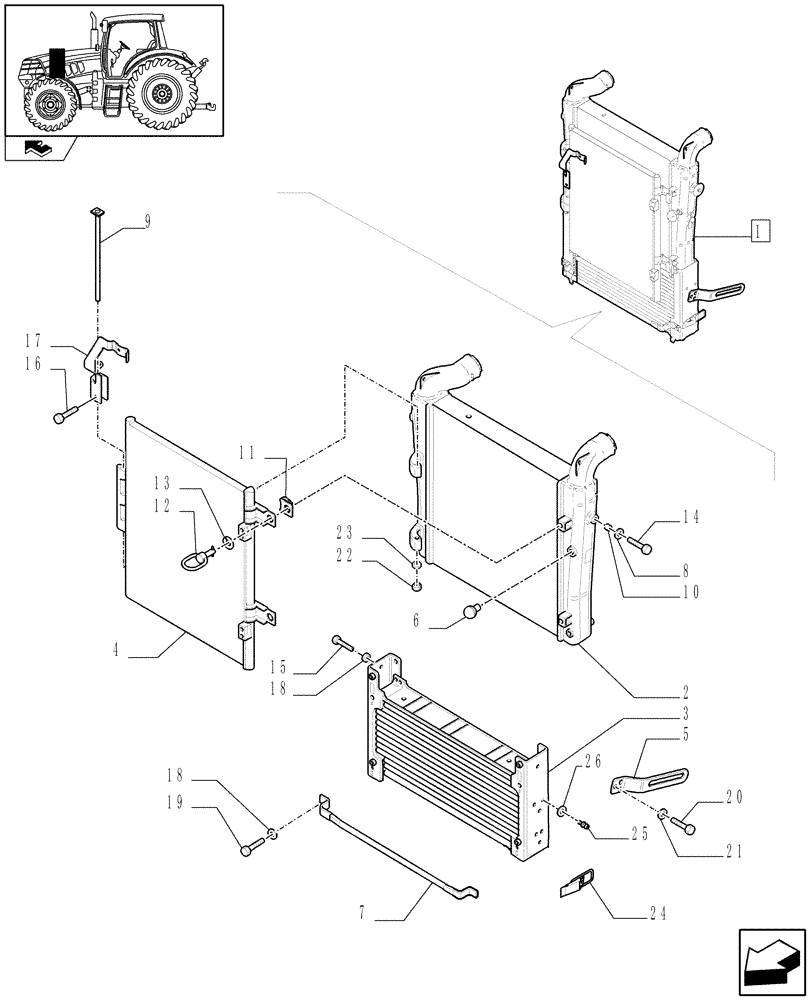

Запчасти Case IH PUMA 180 (1.17.0/ C) - INTERCOOLER, TRANSM. OIL COOLER AND AIR CONDITIONING CONDENSER - BREAKDOWN - D7002 (02) - ENGINE EQUIPMENT

1

84374664

COOLER ASSY.

1шт.

2

87739453

COOLER

Intercooler

1шт.

3

84249211

COOLER

Transmission Oil Cooler

1шт.

4

84249273

CONDENSER

Air Conditioning Condenser

1шт.

5

87619636

BRACKET

2шт.

6

87620057

KNOB

1шт.

7

84137570

HANDLE

1шт.

8

84137491

WASHER,50.8mm ID

2шт.

9

87658579

PIN

1шт.

10

87385194

ROLLER BEARING,8mm ID x 16mm OD x 5mm W

2шт.

11

87734730

SPRING CLIP

2шт.

12

87734728

STUD,5mm OD x 56mm L

2шт.

13

84137543

SNAP RING

2шт.

14

73170208

HEX SOC SCREW,Flat Hd, M8 x 25mm, Cl 8.8

2шт.

15

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

16

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

17

84394883

BRACKET

1шт.

18

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

19

9706690

NUT,M8 x 1.25, Cl 8

2шт.

20

120100

BOLT,M6 x 20mm, Cl 8.8

6шт.

21

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

22

412141

NUT,M10 x 1.5, Cl 8

1шт.

23

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

24

87390316

LATCH

1шт.

25

84193371

STUD,M5

M5

4шт.

26

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

4шт.
