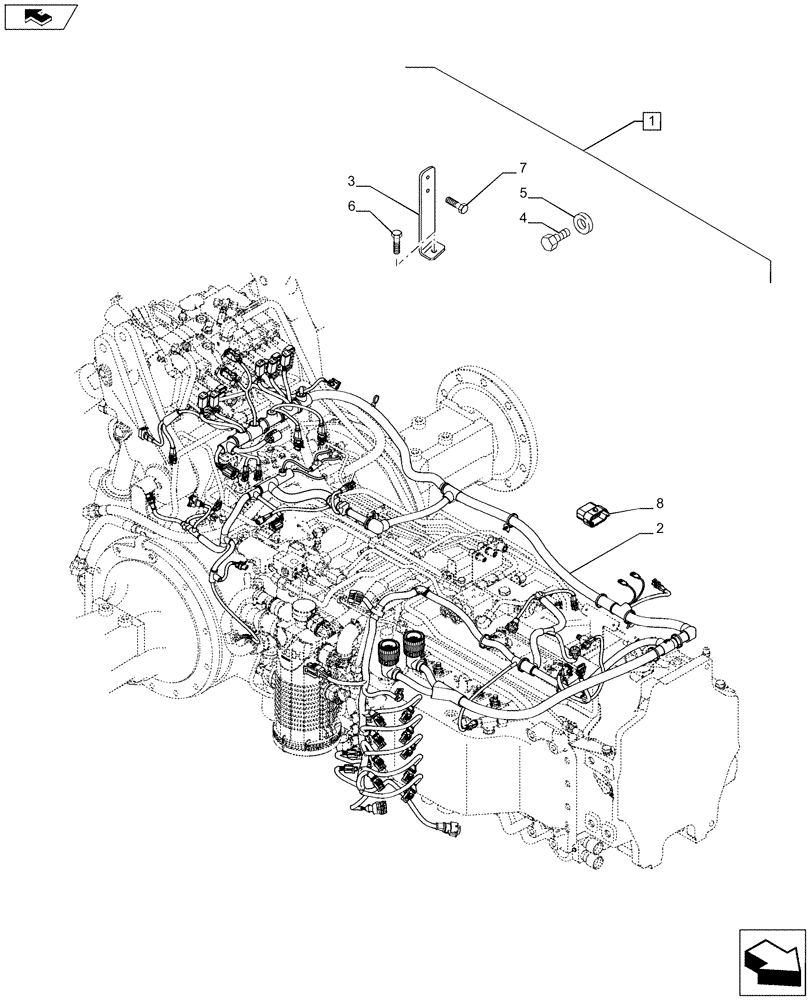

Запчасти Case IH PUMA 170 (88.055.19[02]) - DIA KIT - PREDISPOSITION FOR VIRTUAL TERMINAL - HARNESS (88) - ACCESSORIES

1

719258154

DIA KIT, TRACTOR

Dia Kit, Tractor, Predisposition for Virtual Terminal, Contains Ref. 2-8, Serial Range: -`0

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84347391

HARNESS

Drive Line

1шт.

3

87697075

SUPPORT

, Serial Range: -`0

1шт.

Hand Brake Bracket to Harness

1шт.

4

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

5

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

D=8

1шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

1шт.

7

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

8

84206934

ELEC CONNECTOR

1шт.
