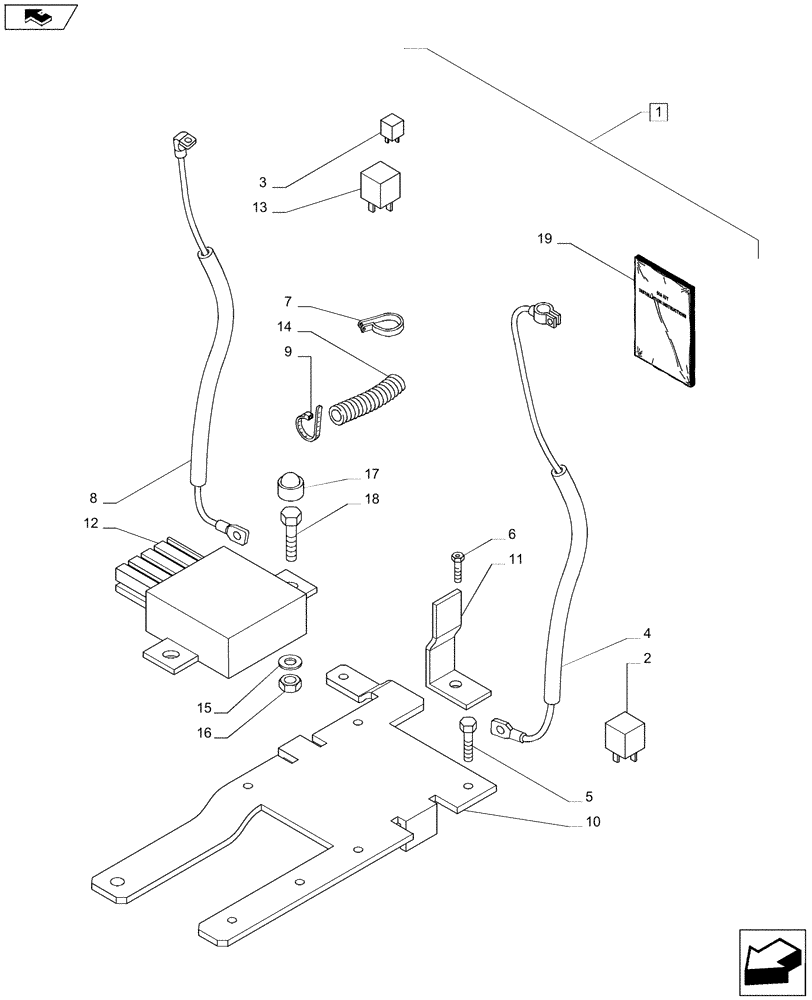

Запчасти Case IH PUMA 170 (88.055.10[01]) - DIA KIT - ELECTRICALLY CONTROLLED BATTERY ISOLATOR (88) - ACCESSORIES

1

719752024

DIA KIT, TRACTOR

Electrically Controlled Battery Isolator, Contains Ref. 2-18 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87691156

RELAY

1шт.

RH

1шт.

3

10395890

FUSE,5A, Mini, Beige

1шт.

4

87576880

ELECTRIC CABLE

1шт.

5

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

6шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

7

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

2шт.

8

84249328

ELECTRIC CABLE

1шт.

9

83933061

STRAP

2шт.

10

87392817

BRACKET

1шт.

11

87392819

BRACKET

1шт.

12

87392809

RELAY,High Current, 12V, 190A

Battery Disconnect Switch

1шт.

13

82023238

RELAY,12V, 20A

1шт.

14

84178749

PROTECTIVE SLEEVE

1шт.

15

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

16

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

2шт.

17

87516431

CUP,for M8 Nut

4шт.

18

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

19

84203283

INSTRUCTION

1шт.
