Запчасти Case IH PUMA 170 (88.033.03[01]) - DIA KIT - HYDRAULIC TRAILER BRAKE (ITALY) (88) - ACCESSORIES

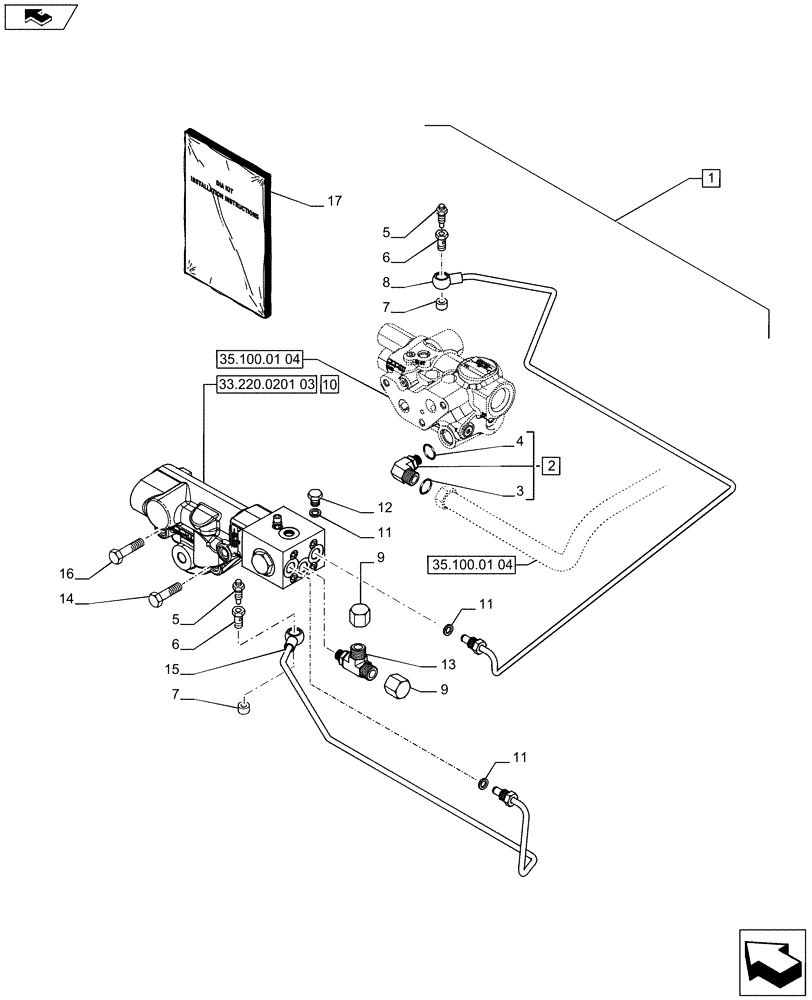

Схема запчастей Case IH PUMA 170 - (88.033.03[01]) - DIA KIT - HYDRAULIC TRAILER BRAKE (ITALY) (88) - ACCESSORIES
13
12
6
11
15
7
9
11
6
14
9
2
3
5
17
1
4
10
33.220.0201 03
home
35.100.01 04
35.100.01 04
5
11
7
8
16

Артикул

Название

Примечание

Количество

1

710418124

DIA KIT, TRACTOR

Hydraulic Trailer Brake - Italy, Contains Ref. 2-16 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

5185562

ELBOW

Contains Ref. 3,4

1шт.

3

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

6

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

7

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

8

84176588

HYD TUBE,6 mm OD x 50, 35 mm L

1шт.

9

87668376

CAP,9/16"-18 Inch THD

2шт.

10

87607363

BRAKE VALVE

ASSY

1шт.

11

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

4шт.

12

47131496

PLUG,Hex, M12 x 1

M12 x 1

2шт.

13

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

Incl.14, 19

1шт.

14

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

15

87608326

BRAKE LINE

RH Brake

1шт.

16

14308921

HEX SOC SCREW,M8 x 60mm, Cl 8.8

M8 x 60

2шт.

17

82998970

INSTRUCTION

1шт.

Выбрано товаров: 18
