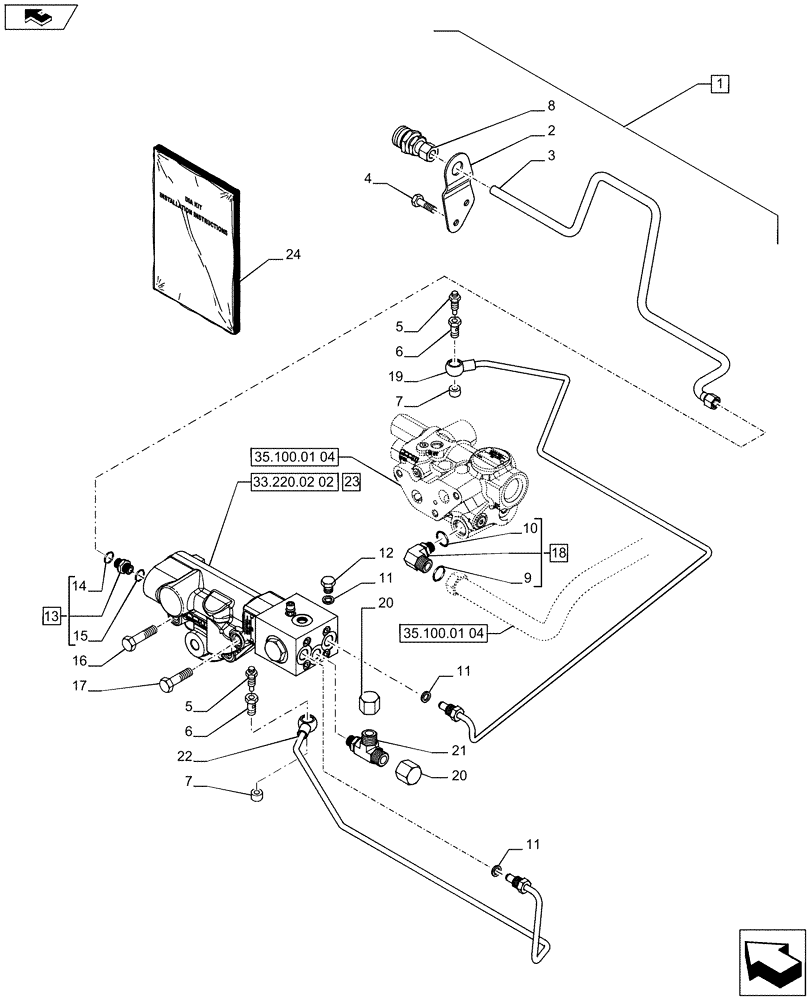

Запчасти Case IH PUMA 170 (88.033.02[01]) - DIA KIT - HYDRAULIC TRAILER BRAKE (UNIVERSAL) (88) - ACCESSORIES

1

710414104

DIA KIT, TRACTOR

Hydraulic Trailer Brake - Universal, Contains Ref. 2-23 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

5196322

BRACKET

1шт.

3

87608334

TUBE

1шт.

4

15540221

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

M12 x 1.25.20

2шт.

5

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

2шт.

6

5155679

BLEEDER VALVE,M12 x 1.25 x 27mm

2шт.

7

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

2шт.

8

84176588

HYD TUBE,6 mm OD x 50, 35 mm L

1шт.

9

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

11

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

4шт.

12

47131496

PLUG,Hex, M12 x 1

M12 x 1

2шт.

13

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Contains Ref. 14,15

1шт.

14

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

16

14308921

HEX SOC SCREW,M8 x 60mm, Cl 8.8

M8 x 60

2шт.

17

14306721

HEX SOC SCREW,M8 x 48mm, Cl 8.8

1шт.

18

5185562

ELBOW

Contains Ref. 9,10

1шт.

19

84176588

HYD TUBE,6 mm OD x 50, 35 mm L

LH Brake

1шт.

20

87668376

CAP,9/16"-18 Inch THD

2шт.

21

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

1шт.

22

87608326

BRAKE LINE

RH Brake

1шт.

23

87601534

BRAKE VALVE

1шт.

24

82998969

INSTRUCTION

1шт.
