(55.512.0501) - ELECTRONIC JOYSTICK WITH PROPORTIONAL SIMULTANEOUS CONTROL OF 3RD VALVE - JOYSTICK (VAR.743121)

Запчасти Case IH PUMA 170 (55.512.0501) - ELECTRONIC JOYSTICK WITH PROPORTIONAL SIMULTANEOUS CONTROL OF 3RD VALVE - JOYSTICK (VAR.743121) (55) - ELECTRICAL SYSTEMS

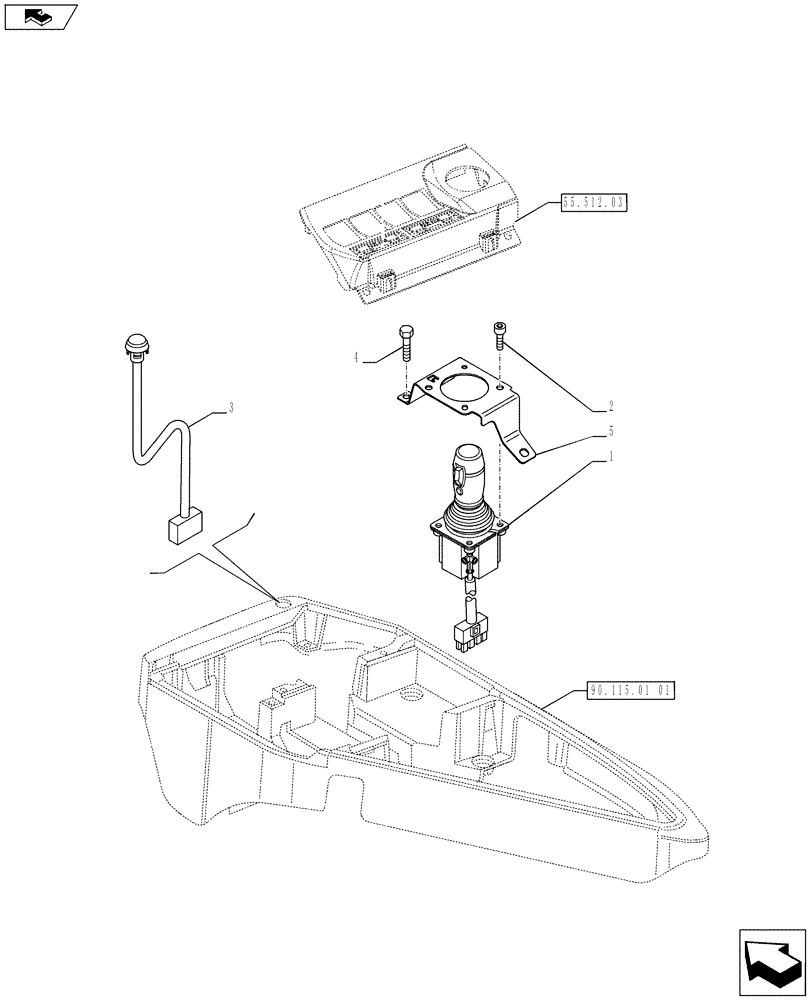

Схема запчастей Case IH PUMA 170 - (55.512.0501) - ELECTRONIC JOYSTICK WITH PROPORTIONAL SIMULTANEOUS CONTROL OF 3RD VALVE - JOYSTICK (VAR.743121) (55) - ELECTRICAL SYSTEMS
2
5
4
3
90.115.01 01
home
55.512.03
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84208738

JOYSTICK

1шт.

1

84208738R

REMAN-JOYSTICK

1шт.

1

84208738C

CORE-JOYSTICK

Return Number

1шт.

2

86639293

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

3

87485775

SWITCH ASSY

1шт.

4

15687901

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

5

84202338

BRACKET

1шт.
