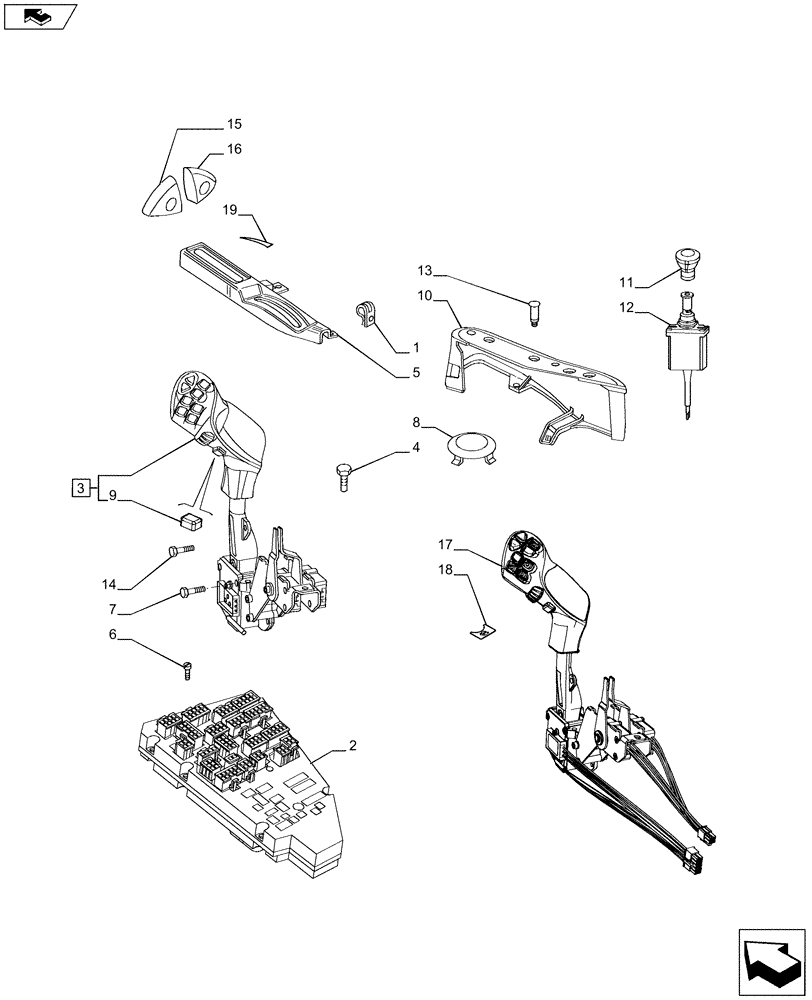

Запчасти Case IH PUMA 170 (55.512.05[01]) - ARMREST CONTROL UNIT - ELECTRONIC CONTROLS AND ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS

1

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

NUT

1шт.

2

84209240

MODULE

, Serial Range: -C9019

1шт.

2

47443335R

REMAN ELECT CONTROL

PUMA 170, PUMA 185, PUMA 200, PUMA 215, PUMA 230, All TRACTOR - CVT, Serial Range: -C9019 (12/10-)

1шт.

2

47443335C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

84356314

MODULE

Armrest Control Module, Serial Range: D9019-C9021

1шт.

2

47443335R

REMAN ELECT CONTROL

PUMA 170, PUMA 185, PUMA 200, PUMA 215, PUMA 230, All TRACTOR - CVT, Armrest Control Module, Serial Range: D9019-C9021 (12/10-)

1шт.

2

47443335C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

47443335

MODULE

Armrest Control Module, Start Serial: D9021

1шт.

2

47443335R

REMAN ELECT CONTROL

PUMA 170, PUMA 185, PUMA 200, PUMA 215, PUMA 230, All TRACTOR - CVT, Armrest Control Module , Start Serial: D9021 (12/10-)

1шт.

2

47443335C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

84493604

PAD SET

1шт.

3

84209525

LEVER

ASSY, Contains Ref. 9

1шт.

3

84209525R

REMAN-JOYSTICK

ASSY, Contains Ref. 9

1шт.

3

84209525C

CORE-JOYSTICK

Return Number

1шт.

4

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

2шт.

5

84122980

BEZEL

1шт.

6

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

5шт.

7

13276621

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 8.8, Full Thd

4шт.

8

87725444

BLANK-OFF PLUG,57.5mm OD, Black

1шт.

Less Joystick

1шт.

9

84238354

CAP

1шт.

10

84216544

HOUSING

1шт.

11

87638633

KNOB

1шт.

12

84218194

SWITCH ASSY

1шт.

13

47056319

WARNING LIGHT

1шт.

14

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

2шт.

15

84202341

KNOB

Throttle, LH

1шт.

16

84229449

KNOB

Throttle, RH

1шт.

17

84596603

LEVER

, Start Serial: D9021

1шт.

17

84596603R

REMAN-JOYSTICK

, Start Serial: D9021

1шт.

17

84596603C

CORE-JOYSTICK

Return Number

1шт.

18

84145170

DECAL

Decals, Start Serial: D9021

1шт.

19

84165457

DECAL

Decals, Start Serial: D9021

1шт.
