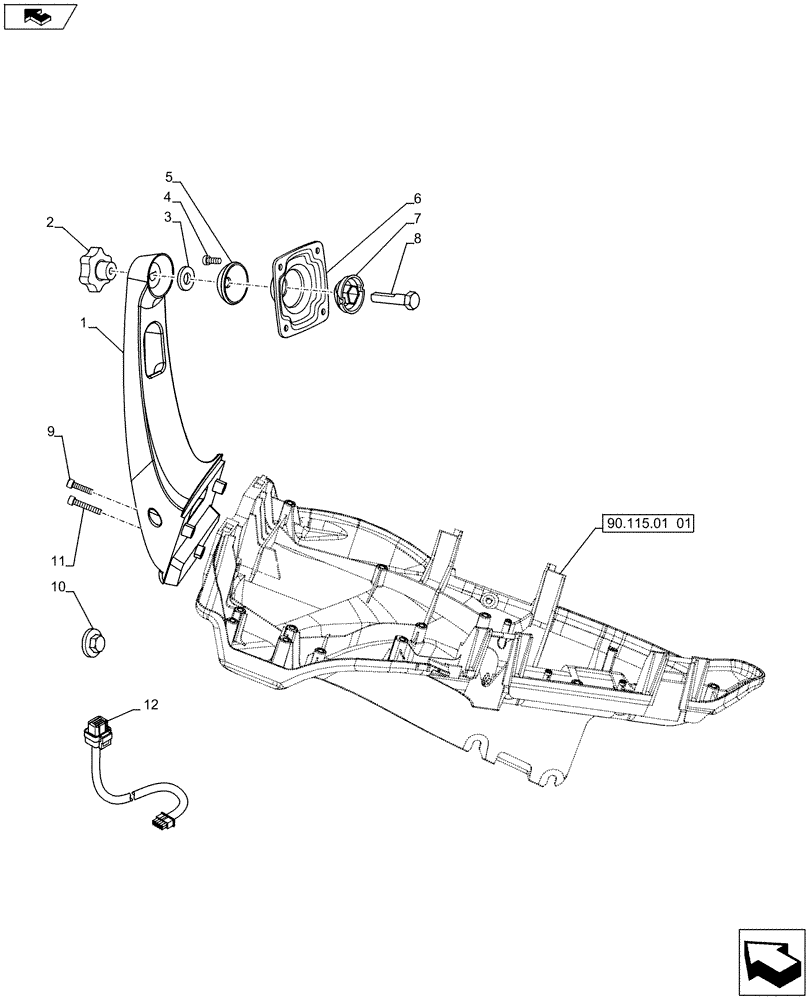

Запчасти Case IH PUMA 170 (55.440.05) - BRACKET MONITOR EQUIPMENT (VAR.743832) (55) - ELECTRICAL SYSTEMS

1

84369437

MOUNT

1шт.

2

87353504

KNOB

1шт.

3

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

4

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

4шт.

5

82039389

CUP WASHER,12.5mm ID x 50mm OD x 17mm Thk, Glass Filled Nylon

1шт.

6

87583911

BASE PLATE

1шт.

7

82038414

HALF BALL

1шт.

8

87568603

SPECIAL BOLT,Hex, M12 x 60

1шт.

9

14305521

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

10

86511444

FLANGE NUT,Hex, M6 x 1

3шт.

11

14305831

HEX SOC SCREW,M6 x 40mm, Cl 10.9

1шт.

12

84228344

HARNESS

1шт.
