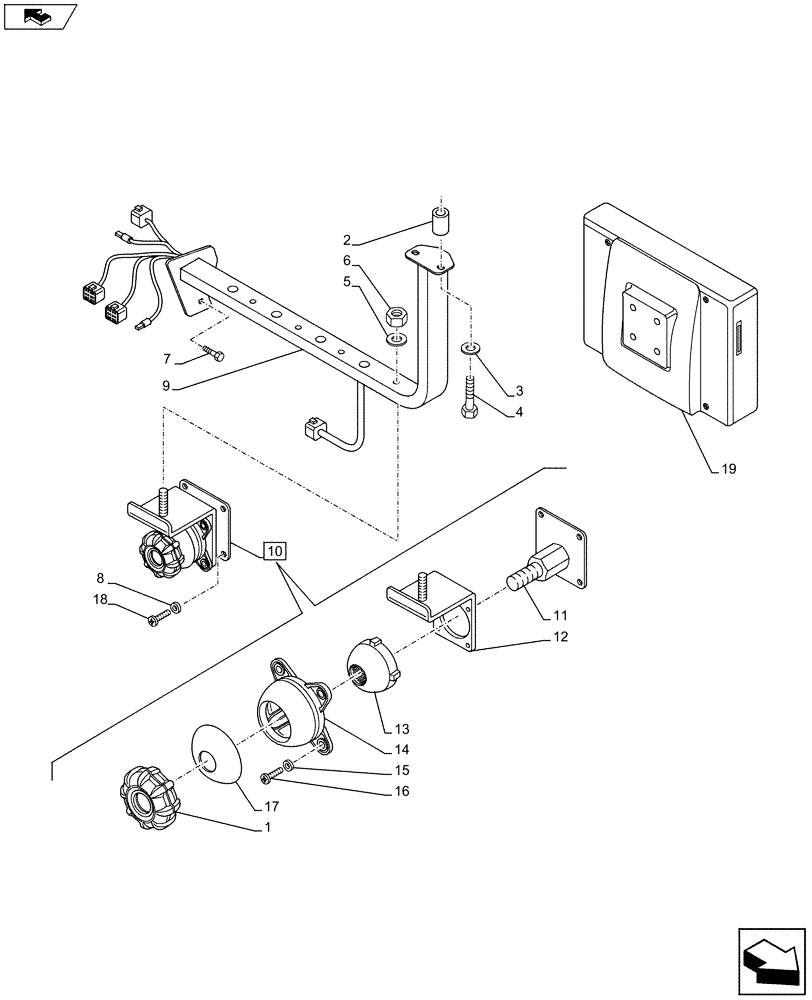

Запчасти Case IH PUMA 170 (55.440.0403) - BRACKET MONITOR EQUIPMENT (VAR.743440) (55) - ELECTRICAL SYSTEMS

1

87316701

KNOB

1шт.

2

87681589

SPACER,8mm ID x 11mm OD x 16mm L

2шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

4

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

5

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

6

11701711

NUT,Hex, M10, Cl 8, ZND

1шт.

7

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

8

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

9

84361958

HOLDER

1шт.

10

87614599

SUPPORT

ASSY, Incl 1, 11 - 17

1шт.

11

87565605

SUPPORT

1шт.

12

87614600

BRACKET

1шт.

13

87614603

CUP,Black

1шт.

14

87614602

BASE

1шт.

15

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

16

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

4шт.

17

87316706

CUP,23mm ID x 68.6mm OD, Black

1шт.

18

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

4шт.

19

84180255

DISPLAY

1шт.
