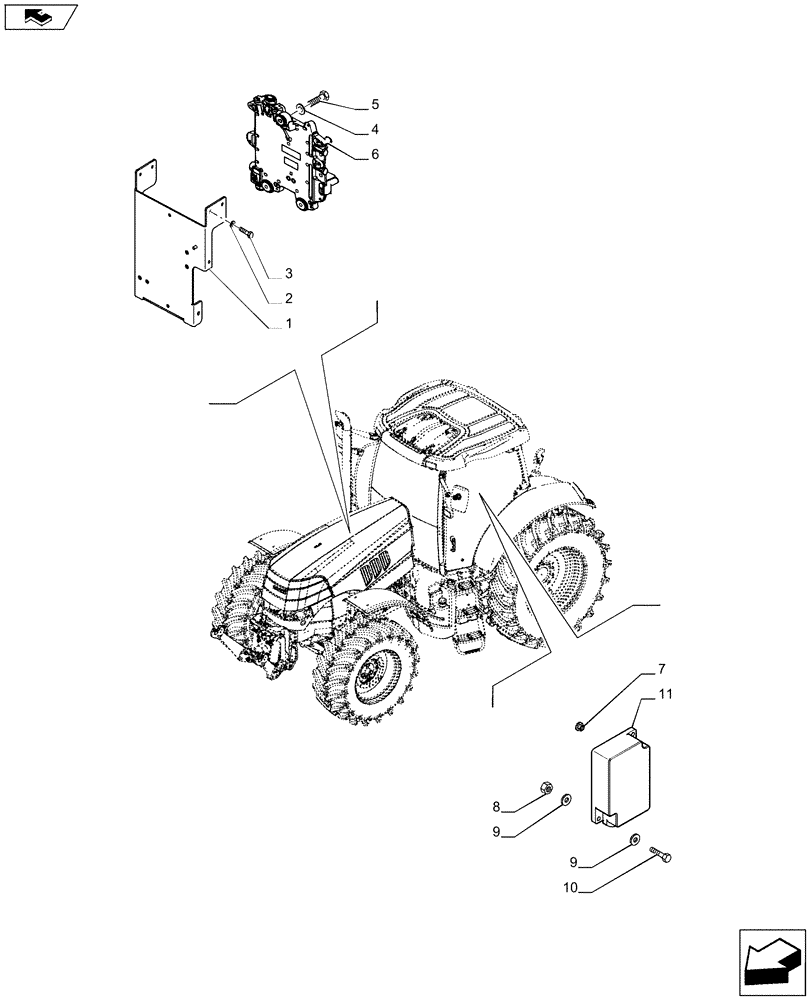

Запчасти Case IH PUMA 170 (55.440.02) - ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS

1

84271412

SUPPORT

1шт.

2

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

3

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

4шт.

4

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.

5

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

3шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

353308

NUT,M6 x 1.0, Cl 8

1шт.

Parts Shown Are Also Available in DIA Kit 710059014

1шт.

8

15896211

NUT,M6, Cl 8

2шт.

Parts Shown Are Also Available in DIA Kit 710059014

1шт.

9

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

Parts Shown Are Also Available in DIA Kit 710059014

1шт.

10

16040621

BOLT,Hex, M6 x 60mm, Cl 8.8, Full Thd

2шт.

Parts Shown Are Also Available in DIA Kit 710059014

1шт.

11

82038360

MODULE

1шт.

Parts Shown Are Also Available in DIA Kit 710059014

1шт.
