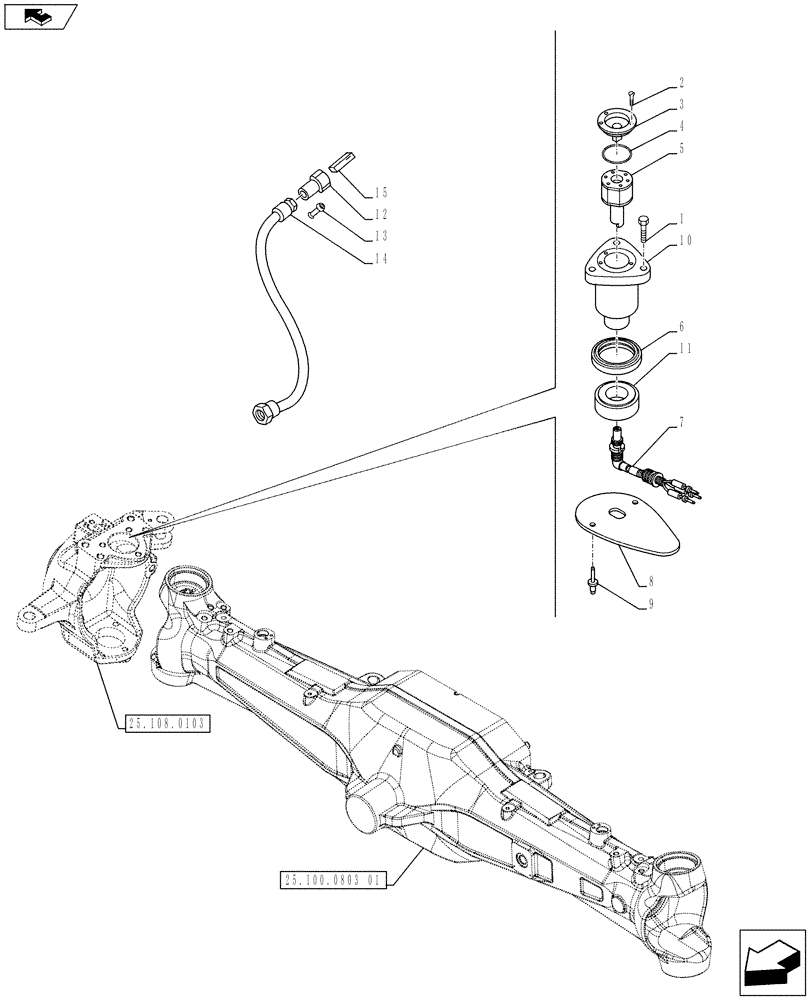

Запчасти Case IH PUMA 170 (55.418.0901[02]) - ABS SYSTEM - 4WD FRONT AXLE WITH SUSPENSION AND BRAKES - SENSOR AND RELATED PARTS (VAR.743964) (55) - ELECTRICAL SYSTEMS

1

14254434

SCREW,Hex, M14 x 1.5 x 30mm, Cl 10.9, Full Thd

M14 x 1.5 x 30 mm

3шт.

2

13299214

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

3

84384510

TOP

1шт.

4

14458280

O-RING,31.42mm ID x 2.62mm

2,62 x 31,42 mm

1шт.

5

87627614

SENSOR

1шт.

6

47137701

SEAL,70mm ID x 90mm OD x 10mm Thk

70 x 90 x 10 mm

1шт.

7

87635259

ELEC CONNECTOR,Male

1шт.

8

87315098

SHIELD

1шт.

9

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

M3.2 x 12 mm

2шт.

10

87345372

BALL STUD

1шт.

11

47137676

SPH ROLLER BEARING,40mm ID x 80mm OD x 24.75mm W

1шт.

12

82918426

ELEC CONNECTOR,Female

1шт.

13

82918419

PLUG

1шт.

14

82016109

FLEXIBLE SHEATH

1шт.

15

82918451

SPACER

1шт.
