Запчасти Case IH PUMA 170 (55.418.09[01]) - FRONT AXLE STEERING SENSOR AND RELATED PARTS - C7090 (VAR.728195-720463-728212-728217) (55) - ELECTRICAL SYSTEMS

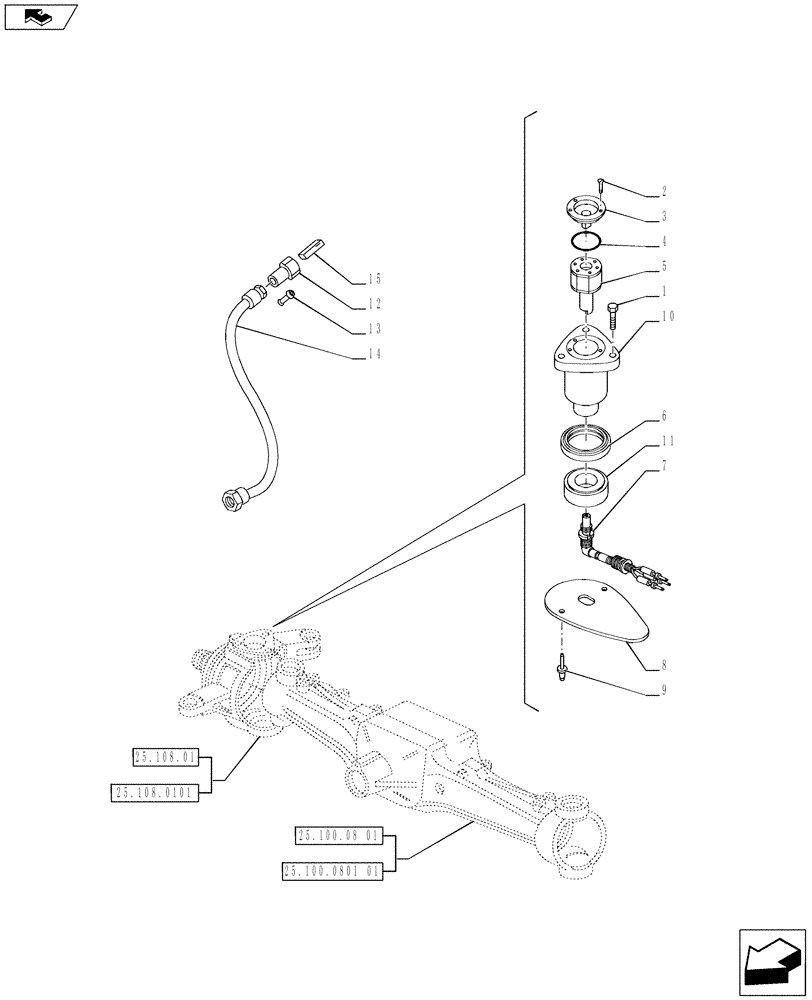

Схема запчастей Case IH PUMA 170 - (55.418.09[01]) - FRONT AXLE STEERING SENSOR AND RELATED PARTS - C7090 (VAR.728195-720463-728212-728217) (55) - ELECTRICAL SYSTEMS
12
14
4
7
15
3
2
13
9
10
11
6
1
5
25.100.08 01
home
25.108.0101
25.108.01
25.100.0801 01
8

Артикул

Название

Примечание

Количество

1

14254434

SCREW,Hex, M14 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

2

13299214

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

3

87574551

PIN

1шт.

4

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

5

87627614

SENSOR

Steering

1шт.

6

47137701

SEAL,70mm ID x 90mm OD x 10mm Thk

80MM

1шт.

7

87627624

ELEC CONNECTOR,Male

1шт.

7

87635259

ELEC CONNECTOR,Male

, Serial Range: -`0

1шт.

Front Axle with Active Suspension, VAR.720463-728212

1шт.

8

87315098

SHIELD

1шт.

9

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.

10

87345372

BALL STUD

1шт.

11

47137676

SPH ROLLER BEARING,40mm ID x 80mm OD x 24.75mm W

70 x 90 x 10

1шт.

12

82918426

ELEC CONNECTOR,Female

1шт.

13

82918419

PLUG

1шт.

14

87658190

FLEXIBLE SHEATH

1шт.

14

82016109

FLEXIBLE SHEATH

, Serial Range: -`0

1шт.

4WD Axle with Brakes, VAR.728195-728212

1шт.

15

82918451

SPACER

1шт.

Выбрано товаров: 19
