(55.418.07[01 ]) - CLASS 4 4WD AXLE WITH ACTIVE SUSPENSION SKY HOOK - SOLENOID VALVES AND SENSORS - C7090 (VAR.720463-728212)

Запчасти Case IH PUMA 170 (55.418.07[01 ]) - CLASS 4 4WD AXLE WITH ACTIVE SUSPENSION SKY HOOK - SOLENOID VALVES AND SENSORS - C7090 (VAR.720463-728212) (55) - ELECTRICAL SYSTEMS

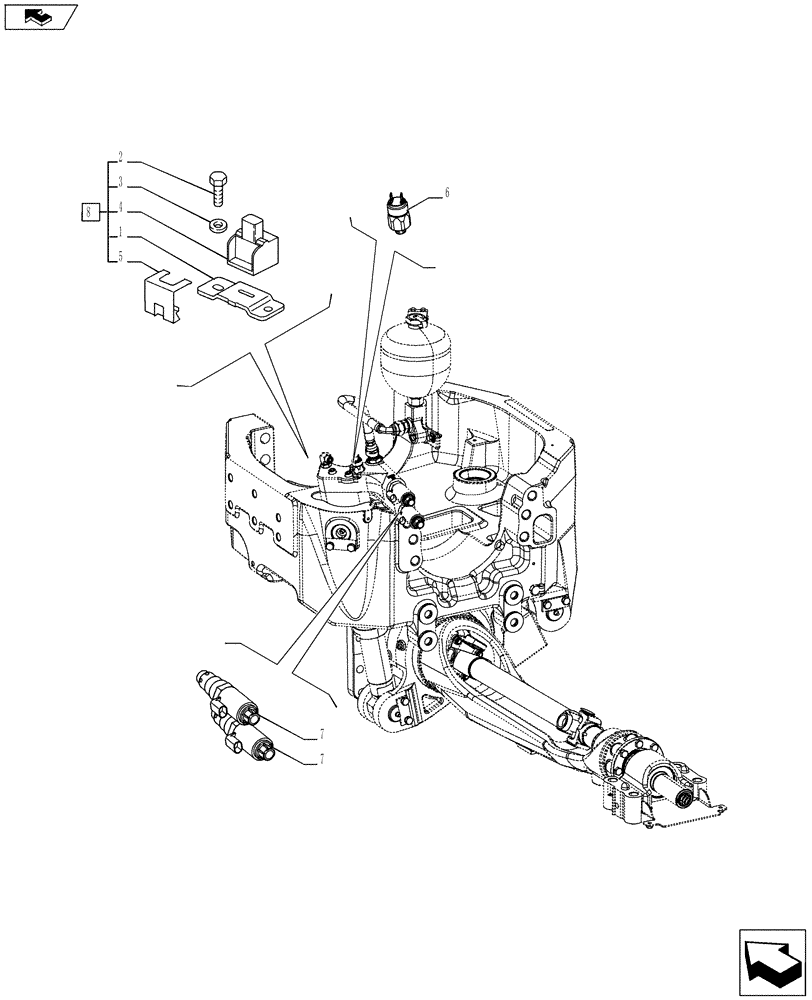

Схема запчастей Case IH PUMA 170 - (55.418.07[01 ]) - CLASS 4 4WD AXLE WITH ACTIVE SUSPENSION SKY HOOK - SOLENOID VALVES AND SENSORS - C7090 (VAR.720463-728212) (55) - ELECTRICAL SYSTEMS
6
7
4
1
home
5
2
7
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87347720

BRACKET

1шт.

2

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

3

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

2шт.

4

87306782

RELAY

1шт.

5

87319086

MOUNTING CLIP

1шт.

6

87490536

PRESSURE SWITCH

1шт.

7

87383960

SOLENOID VALVE

2шт.

8

87351083

SENSOR

Accelerometer contains Ref. 1,4,5

1шт.
