(55.414.02) - SOLENOID VALVES FOR TRANSMISSION CONTROL VALVE AND SENSORS

Запчасти Case IH PUMA 170 (55.414.02) - SOLENOID VALVES FOR TRANSMISSION CONTROL VALVE AND SENSORS (55) - ELECTRICAL SYSTEMS

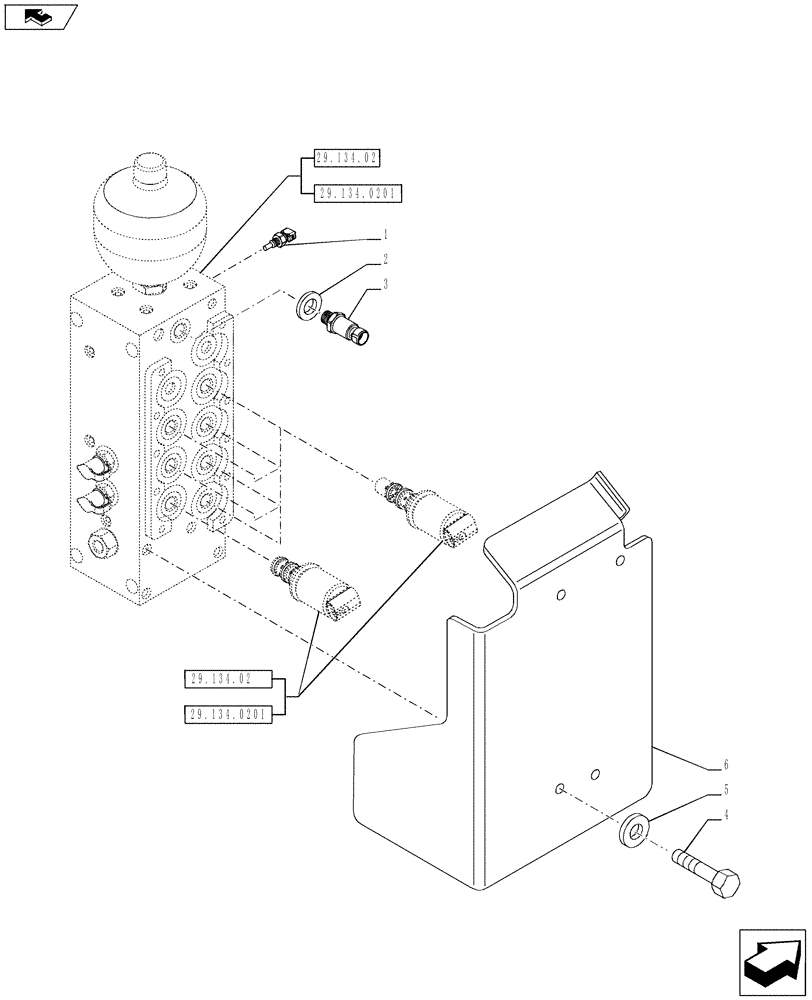

Схема запчастей Case IH PUMA 170 - (55.414.02) - SOLENOID VALVES FOR TRANSMISSION CONTROL VALVE AND SENSORS (55) - ELECTRICAL SYSTEMS
3
6
5
2
4
1
29.134.02
home
29.134.0201
29.134.02
29.134.0201
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87484581

SENSOR

1шт.

2

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.

3

87752203

PRESSURE SWITCH

Pressure

1шт.

4

16045021

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

4шт.

5

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

6

87693141

COVER

1шт.
