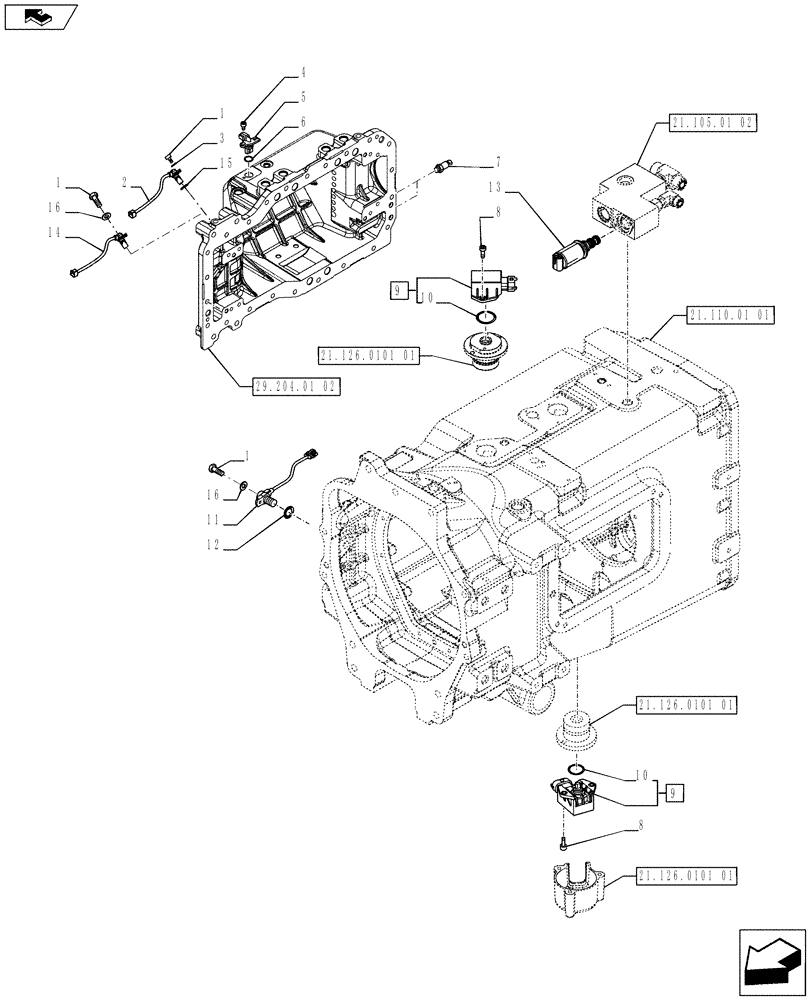

Запчасти Case IH PUMA 170 (55.414.01) - TRANSMISSION SENSOR AND SOLENOID VALVE (55) - ELECTRICAL SYSTEMS

1

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

M6 x 12

6шт.

2

84169162

SENSOR

2шт.

3

10615476

LOCK WASHER,Ext Tooth, M6

2шт.

4

14306120

HEX SOC SCREW,M8 x 1.25 x 12mm, Cl 8.8, Full Thd

M28 x 12

1шт.

5

87673029

SOCKET/RECEPTACLE,17.15mm OD x 48.4mm L

1шт.

6

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

7

87752203

PRESSURE SWITCH

Pressure

3шт.

8

13272014

SCREW,Pozidriv Pan Hd, M4 x 12mm, Cl 5.8

4шт.

9

84340074

SENSOR

Contains Ref. 10

2шт.

Also VAR.743042 50 kph CVT Transmission and VAR.743142 40 kph "Economy" CVT Transnission (Q.ty 1 - Requires Radar Option)

1шт.

10

84126835

O-RING,1.3mm Thk x 9.5mm ID, 70 Duro

1шт.

Also VAR.743042 50 kph CVT Transmission and VAR.743142 40 kph "Economy" CVT Transnission (Q.ty 1 - Requires Radar Option)

1шт.

11

87564761

SENSOR

Speed

3шт.

12

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

13

84286799

SOLENOID VALVE,12V DC, 7.3Ohm

1шт.

14

84243033

SENSOR

Wheel Speed Sensor

1шт.

15

47136259

O-RING,3mm Thk x 17.2mm ID, 72 Duro

2шт.

16

12605379

LOCK WASHER

3шт.
