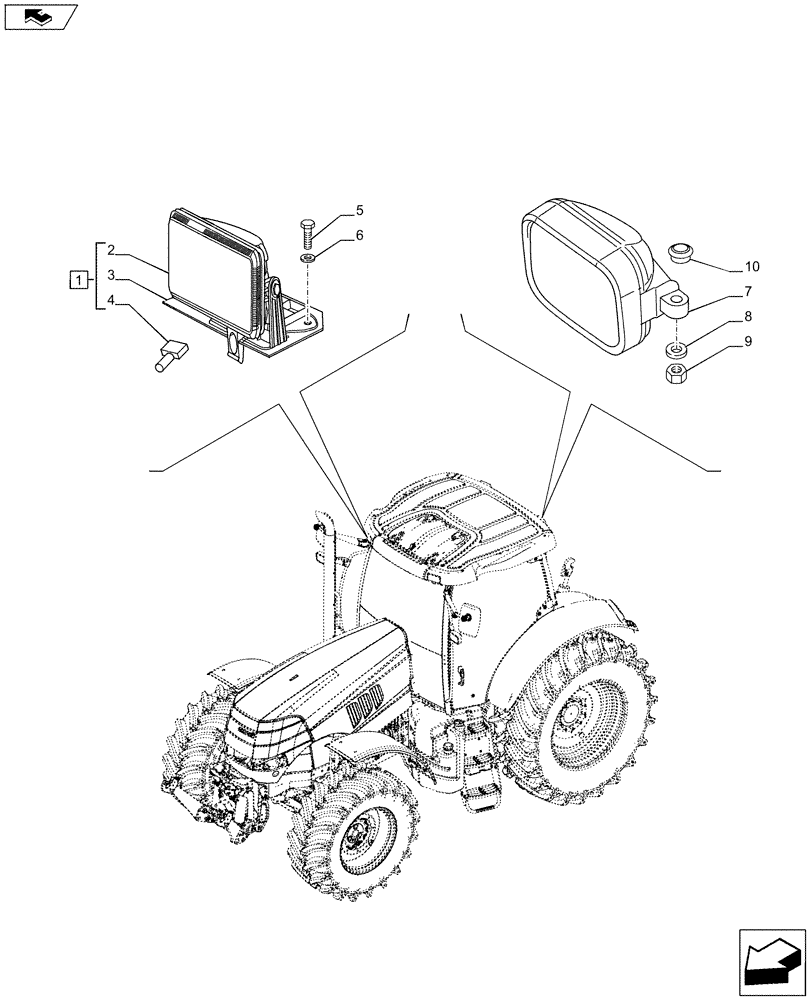

Запчасти Case IH PUMA 170 (55.404.02[01]) - WORKLAMPS (55) - ELECTRICAL SYSTEMS

1

82031073

WORK LAMP,Halogen, 12V, 50W, Clear

RH HEADLAMP ASSY, RH, Contains Ref. 2-4

1шт.

1

82031074

WORK LAMP

LH HEADLAMP ASSY, LH, Contains Ref. 2-4

1шт.

2

82031078

LIGHT ASSY.

1шт.

3

82031076

SUPPORT

RH

1шт.

3

82031077

MOUNTING PLATE

LH

1шт.

4

44995162

BULB,T-3 1/4, 12.8V, 50W

1шт.

5

84193289

SCREW,Torx, Pan HD, M6 x 14mm, Cl 4.8

4шт.

6

14496407

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

4шт.

7

87313318

WORK LAMP,Halogen, 12V, 55W, Clear

RH

1шт.

7

87313317

WORK LAMP

LH

1шт.

8

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

9

14048211

NUT,M8 x 1.25, Cl 8

2шт.
