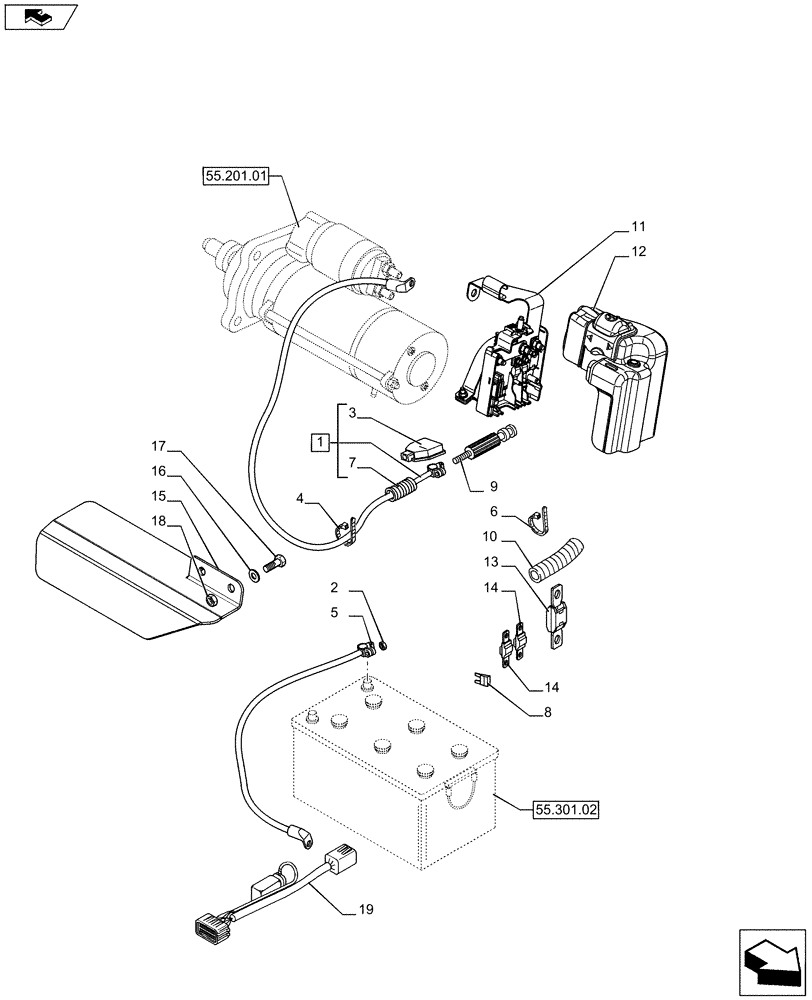

Запчасти Case IH PUMA 170 (55.301.03[01]) - ELECTRICALLY CONTROLLED BATTERY (55) - ELECTRICAL SYSTEMS

1

87724835

WIRE HARNESS

1290MM, Contains Ref. 3,7, BATTERY TO STARTER MOTOR

1шт.

2

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

3

81867524

PROTECTION CAP

1шт.

4

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

1шт.

5

87487740

NEG BATTERY CABLE,1250mm L

POS BATTERY CABLE 970MM, Incl. 6, 7

1шт.

6

83933061

STRAP

3шт.

7

82918747

SHIELD

1шт.

8

10401290

FUSE,25 amp Mini

1шт.

9

82028966

TERMINAL CONNECTOR,M10 x 1.5, CL 8.8

1шт.

10

84178749

PROTECTIVE SLEEVE

L=400mm

1шт.

11

84279612

FUSE BOX

ASSY

1шт.

12

84255327

COVER

1шт.

13

82033972

FUSE,250A

1шт.

14

87390344

FUSE,30A, MIDIVAL

2шт.

15

84282733

SHIELD

1шт.

16

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

17

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

18

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

19

87309858

WIRE HARNESS

Radio

1шт.

Japan Configuration, VAR.720009

1шт.
