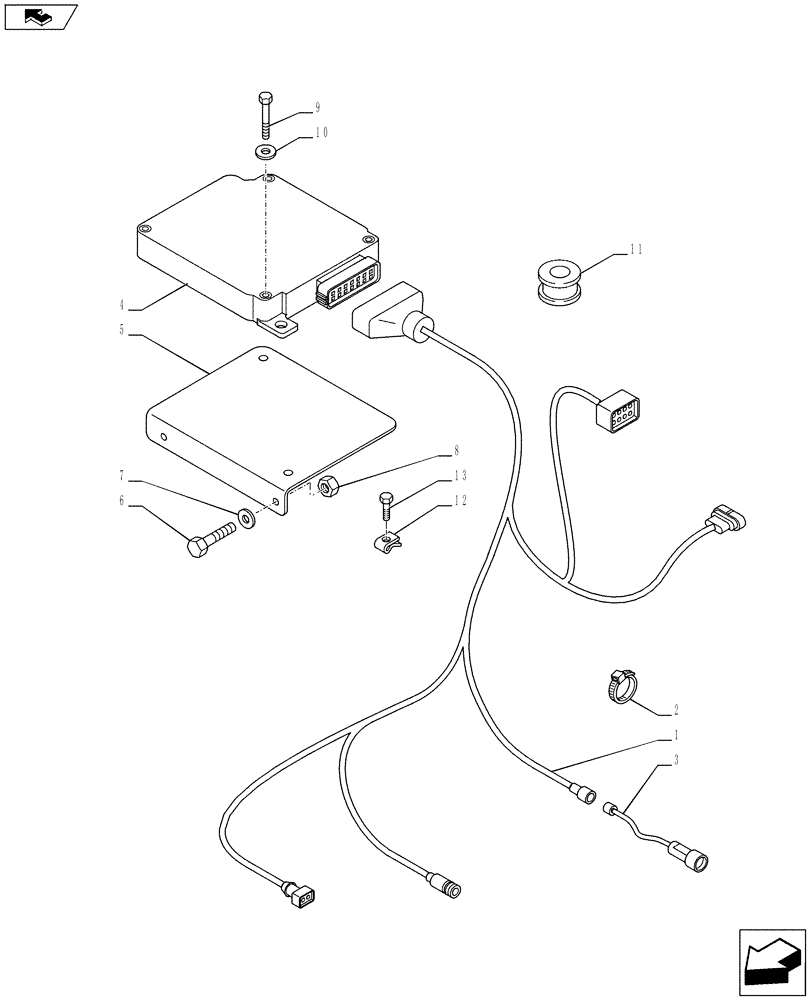

Запчасти Case IH PUMA 170 (55.100.28) - FAST STEERING - ELECTRONIC CONTROL MODULE (VAR.743187 / 743608; VAR.729636) (55) - ELECTRICAL SYSTEMS

1

84228359

HARNESS

Fast Steer

1шт.

2

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

7шт.

3

87738133

SENSOR

1шт.

4

87563011

MODULE

1шт.

5

84237749

SUPPORT

1шт.

6

86050276

BOLT,Hex, M5 x 16mm, Cl 8.8, Full Thd

, Serial Range: -C9023

2шт.

6

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

, Start Serial: D9023

2шт.

7

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

, Serial Range: -C9023

2шт.

7

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

, Start Serial: D9023

2шт.

8

14084111

LOCK NUT,M5 x .8, Flg

2шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

, Serial Range: -C9023

2шт.

9

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

, Start Serial: D9023

2шт.

10

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

, Serial Range: -C9023

2шт.

10

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

, Start Serial: D9023

2шт.

11

81862745

GROMMET,10mm x 38 x 28

1шт.

12

14371771

SPRING NUT,M6, U, 24.3mm long

2шт.

13

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.
