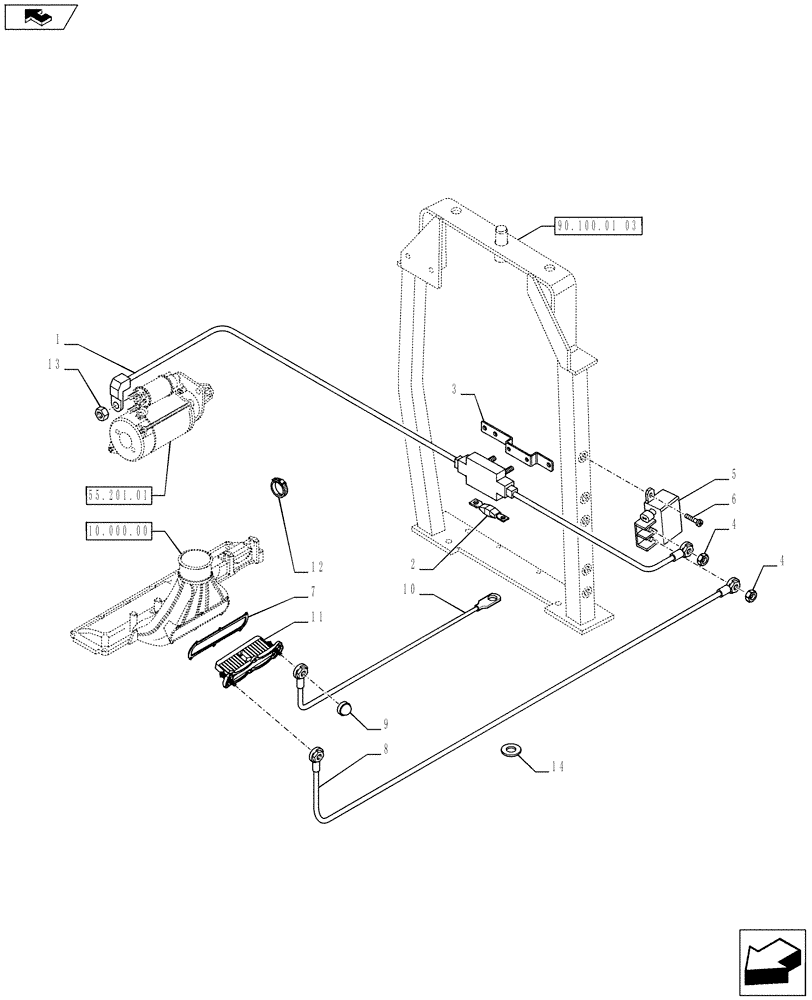

Запчасти Case IH PUMA 170 (55.100.12) - GRID HEATER (VAR.729203) (55) - ELECTRICAL SYSTEMS

1

84243701

WIRE HARNESS

Grid Heater, ASSY, Contains Ref. 2

1шт.

2

11056290

FUSE,125A, Maxi

125 AMP

1шт.

3

87570805

BRACKET

1шт.

4

12574211

NUT,M6 x 1, Cl 8

2шт.

5

82022813

RELAY,12V, High Current

1шт.

6

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

2шт.

7

2854701

GASKET,0.8mm Thk

1шт.

8

82036464

ELECTRIC CABLE,650mm L

1шт.

9

87533425

COVER,M6

M6

4шт.

10

87316233

ELECTRIC CABLE

1шт.

11

2854837

HEATER

1шт.

12

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

2шт.

13

15896211

NUT,M6, Cl 8

1шт.

14

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.

Less Grid Heater

1шт.
