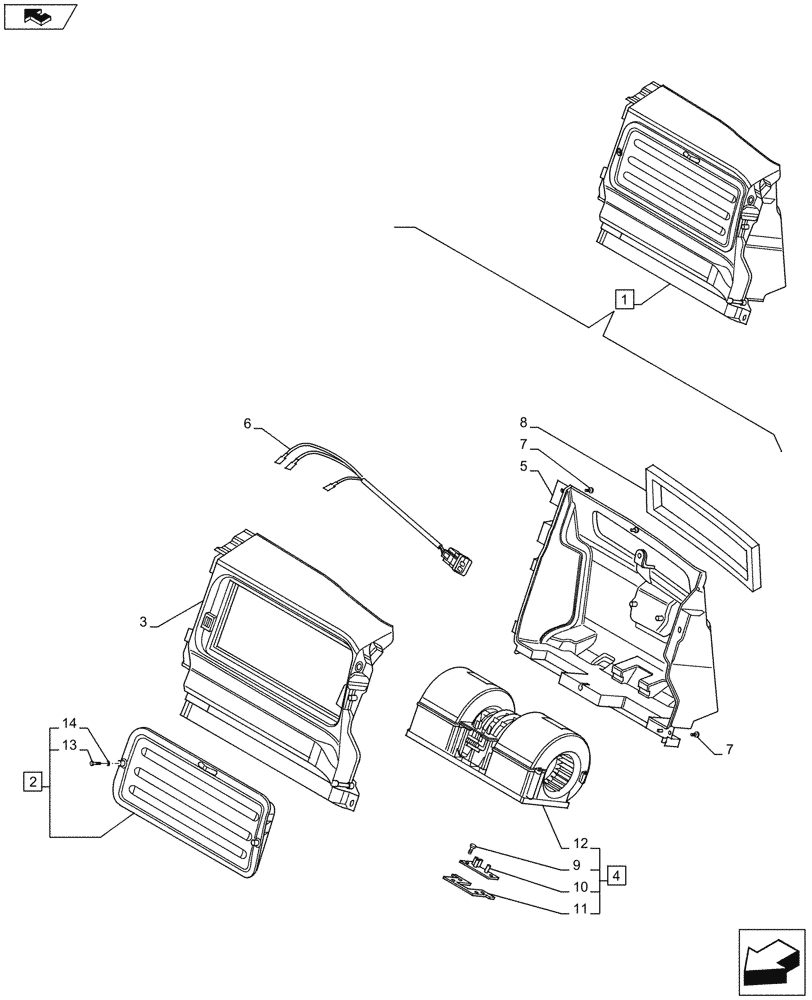

Запчасти Case IH PUMA 170 (50.206.02) - BLOWER - BREAKDOWN (50) - CAB CLIMATE CONTROL

1

87651396

BLOWER,12V

ASSY, Contains Ref. 2 - 14

1шт.

2

82027045

VENT

ASSY, Contains Ref. 13, 14

1шт.

3

87485334

HOUSING

1шт.

4

87663955

BLOWER

ASSY, Contains Ref. 9 - 12

1шт.

5

87651400

COVER

1шт.

6

82023565

WIRE HARNESS

1шт.

7

13297614

SCREW,M4 x 16mm

8шт.

8

82028290

FOAM INSULATION

1шт.

9

15903801

SELF-TAP SCREW,Pozidriv Pan Hd, M4.8 x 1.6 x 13mm

2шт.

10

82033103

RESISTOR

1шт.

11

82033104

PLATE

1шт.

12

87663947

BLOWER,12 V

1шт.

12

87663947R

REMAN-BLOWER

1шт.

12

87663947C

CORE-BLOWER

Return Number

1шт.

13

82028291

STUD

18mm L

2шт.

14

82028955

SEALING WASHER,4.25mm ID x 13.5mm OD x 1.6mm Thk

2шт.
