(41.200.0103[01 ]) - 4WD FRONT AXLE WITH ACTIVE SUSPENSION - STEERING CYLINDER PIPES AND POWER STEER. PIPES - C7090 (VAR.720463-728212)

Запчасти Case IH PUMA 170 (41.200.0103[01 ]) - 4WD FRONT AXLE WITH ACTIVE SUSPENSION - STEERING CYLINDER PIPES AND POWER STEER. PIPES - C7090 (VAR.720463-728212) (41) - STEERING

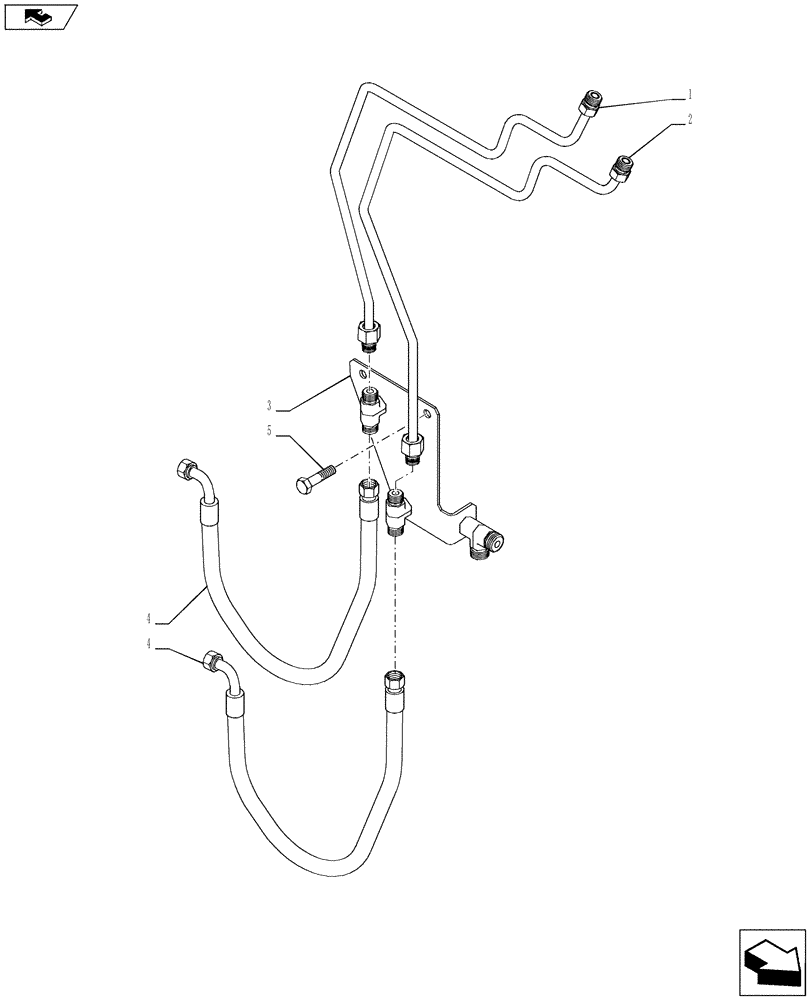

Схема запчастей Case IH PUMA 170 - (41.200.0103[01 ]) - 4WD FRONT AXLE WITH ACTIVE SUSPENSION - STEERING CYLINDER PIPES AND POWER STEER. PIPES - C7090 (VAR.720463-728212) (41) - STEERING
home
1
4
2
5
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87702724

HYD TUBE,10 mm OD x 603, 440 mm L

11/16 - 16

1шт.

2

87702723

HYD TUBE,10 mm OD x 673, 428 mm L

11/16 - 16

1шт.

3

87309523

HOLDER

1шт.

4

82039381

HOSE,9.53mm ID x 700mm L, SAE 100R16

11/16 - 16, MM 700

2шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.
