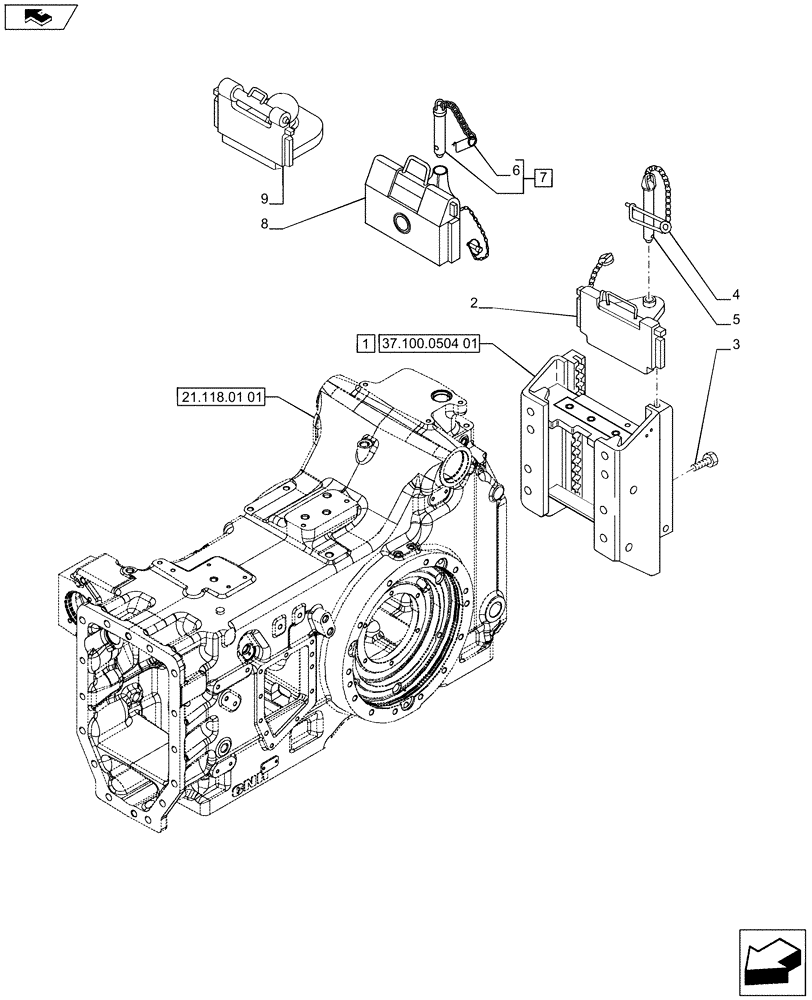

Запчасти Case IH PUMA 170 (37.100.05) - SLIDER TOW HOOK WITH FIXED D3 TYPE COUPLING - TOW HITCH (VAR.728947-743225) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84351183

FRAME

ASSY

1шт.

2

82027419

TOW HOOK

1шт.

Parts Shown Are also Available in DIA Kit 710947024

1шт.

3

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

8шт.

4

5152004

HAIR PIN COTTER,195mm L

1шт.

Parts Shown Are also Available in DIA Kit 710947024

1шт.

5

5152005

PIN

1шт.

Parts Shown Are also Available in DIA Kit 710947024

1шт.

6

5152004

HAIR PIN COTTER,195mm L

1шт.

Parts Shown Are also Available in DIA Kit 710932024

1шт.

7

5159486

PIN

Contains Ref. 6

1шт.

Parts Shown Are also Available in DIA Kit 710932024

1шт.

8

5199451

TOW HOOK

1шт.

Parts Shown Are also Available in DIA Kit 710932024

1шт.

9

82038785

TOW HOOK

1шт.

Parts Shown Are also Available in DIA Kit 718247014

1шт.
