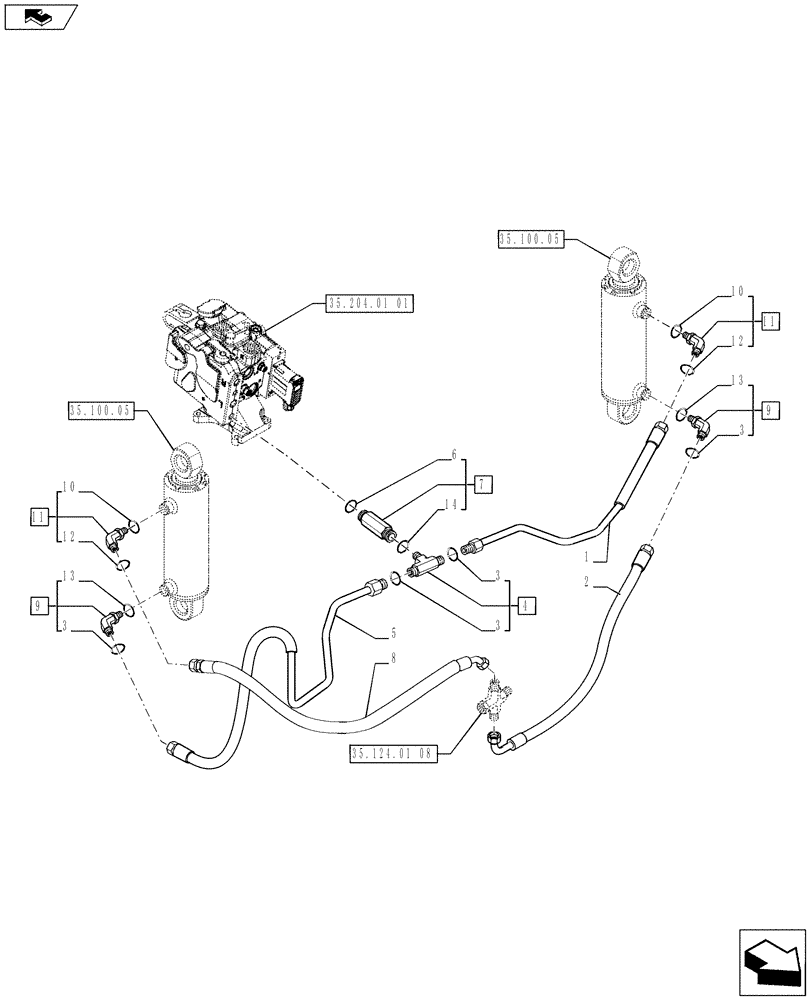

Запчасти Case IH PUMA 170 (35.100.04[02]) - LIFT CYLINDER, PIPE, REAR (35) - HYDRAULIC SYSTEMS

1

87620232

HYD TUBE

LH Lift Cylinder

1шт.

2

87316344

FLEXIBLE HOSE

LH Lift Cylinder Low Pressure

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

4

5197110

TEE,1"-14 UNS

Contains Ref. 3

1шт.

5

87370316

PIPE

RH Lift Cylinder

1шт.

6

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

7

84323257

HYD CONNECTOR,M22 x 1.5 x 83mm L

Contains Ref. 14,6

1шт.

8

87316345

FLEXIBLE HOSE

RH Lift Cylinder Low Pressure

1шт.

9

5185562

ELBOW

Contains Ref. 3,13

2шт.

10

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Also VAR.720819 Rear Hyd. Power Lift without 3 Point Linkage

1шт.

11

86579693

ELBOW,90 Degree, 1"-14 ORFS x M18 x 1.5 ORB

Contains Ref. 10,12

2шт.

Also VAR.720819 Rear Hyd. Power Lift without 3 Point Linkage

1шт.

12

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

Also VAR.720819 Rear Hyd. Power Lift without 3 Point Linkage

1шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

14

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
