Запчасти Case IH PUMA 170 (35.100.01[04]) - HYDRAULIC PUMP - PRIORITY VALVE (VAR.729004 / 743616) (35) - HYDRAULIC SYSTEMS

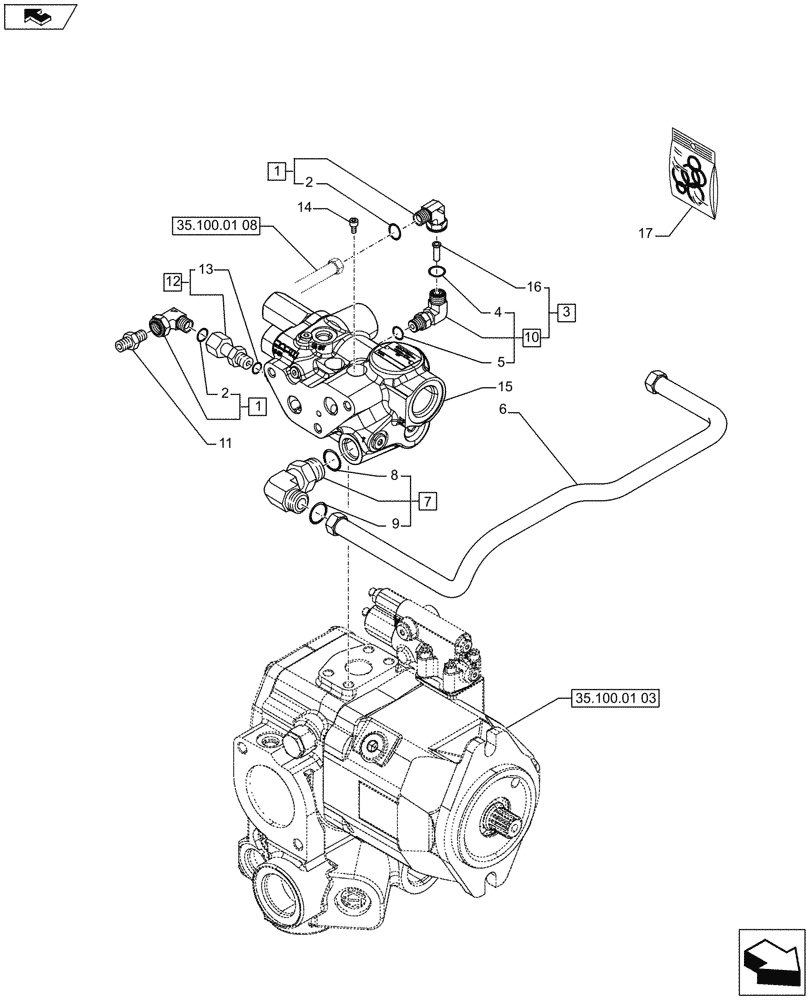

Схема запчастей Case IH PUMA 170 - (35.100.01[04]) - HYDRAULIC PUMP - PRIORITY VALVE (VAR.729004 / 743616) (35) - HYDRAULIC SYSTEMS
35.100.01 03
9
4
3
14
10
15
16
7
2
6
home
1
13
5
17
12
8
11
1
2
35.100.01 08

Артикул

Название

Примечание

Количество

1

84354806

HYD CONNECTOR,9/16"-18 ORFS x 9/16"-18

Contains Ref. 2

2шт.

2

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

3

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

Contains Ref. 10-16

1шт.

4

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

5

5185507

O-RING,8.92mm ID x 1.83mm Width

1шт.

6

87608316

HYD TUBE

1шт.

7

5185562

ELBOW

Contains Ref. 8,9

1шт.

8

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

9

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

47126658

90 ELBOW,9/16"-18 ORFS x 7/16"-20

Contains Ref. 4,5

1шт.

11

87661868

HYD CONNECTOR,M14 x 1.5 x 29.5mm L

1шт.

12

84182082

HYD CONNECTOR,9/16"-18 x M12 x 1.5 ORB

Contains Ref. 13

1шт.

13

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

14

14420321

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

15

84141056

CONTROL VALVE

1шт.

16

47126655

FILTER STRAINER

1шт.

17

84355656

SEAL KIT

Contains Ref. 15

1шт.

Выбрано товаров: 17
