Запчасти Case IH PUMA 170 (05.100.04[03]) - MAINTENANCE PARTS - FUSES (05) - SERVICE & MAINTENANCE

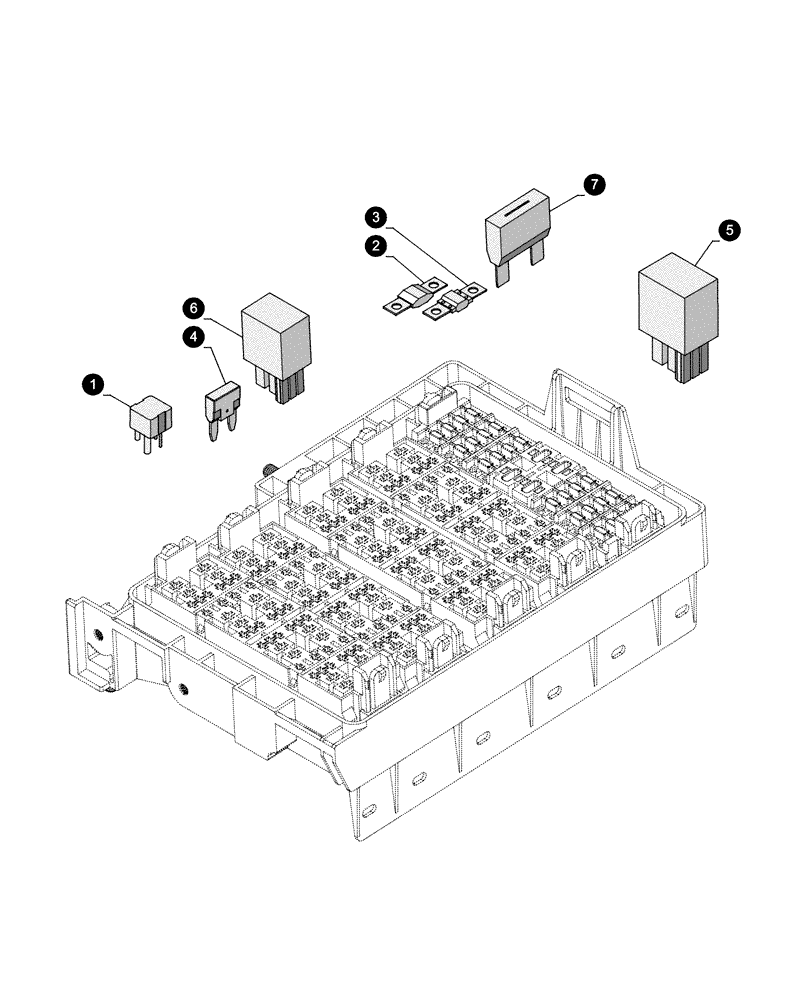

Схема запчастей Case IH PUMA 170 - (05.100.04[03]) - MAINTENANCE PARTS - FUSES (05) - SERVICE & MAINTENANCE
6
3
4
5
1
2
7

Артикул

Название

Примечание

Количество

1

82030798

RELAY,12V, 70A

12V, 70A

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

Valid with VAR. 743043, 743427 / 743630, VAR. 729636, 743187 / 743608

1шт.

D7166 After Date 2 November 2011

1шт.

1

82038934

RELAY

Rear View Mirror

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

Valid with VAR. 743227, 743228, 743229, 728070

1шт.

2

87422637

FUSE,125A, Midival

125A, Green

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

3

82023624

FUSE,250A, Mega

250A

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

Valid with STD

1шт.

4

10401290

FUSE,25 amp Mini

25A, Minival

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

4

10395890

FUSE,5A, Mini, Beige

5A, Minival

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

5

84543666

RELAY,12V, 40A, Mini

12V, 30A

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

5

87392809

RELAY,High Current, 12V, 190A

12V, 190A

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

5

87691156

RELAY

12V, 10/15A

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

6

82017871

RELAY,12V, 20A

12V, 35A, Maxival

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

Valid with VAR. 743041, 743132 / 743601, VAR. 729636, 743187 / 743608, VAR. 743332 / 743609, VAR. 743348 / 743610, VAR. 743447, 743407

1шт.

D7166 After Date 2 November 2011

1шт.

6

84543528

RELAY,12V, 20A, Micro

15/25A, Flasher

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

Valid with VAR. 729636, 743187 / 743608, VAR. 720414, 720418, VAR. 729385, 743170 / 743623, VAR. 728385, 743171 / 743624, VAR. 720178, 743169 / 743625

1шт.

C7090 Before Date 13 September 2011

1шт.

6

84543528

RELAY,12V, 20A, Micro

12V, 20A

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

Valid with VAR. 743977, 743978, 743979, 743980, VAR. 729385, 743170 / 743623, VAR. 728385, 743171 / 743624, VAR. 720178, 743169 / 743625

1шт.

D7090 After Date 13 September 2011

1шт.

6

86619908

RELAY,12V, 150A

12V

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

Valid with VAR. 729203

1шт.

6

87304226

RELAY,12V, Combined, Black

12V

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

Valid with VAR. 729636, 743187 / 743608

1шт.

D7166 After Date 2 November 2011

1шт.

6

84271717

RELAY,12V, 50A

12V, 70A

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

Valid with STD

1шт.

D7106 After Date 24 July 2012

1шт.

7

84174070

FUSE,30A, Orange

30A, Orange

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

Выбрано товаров: 47
