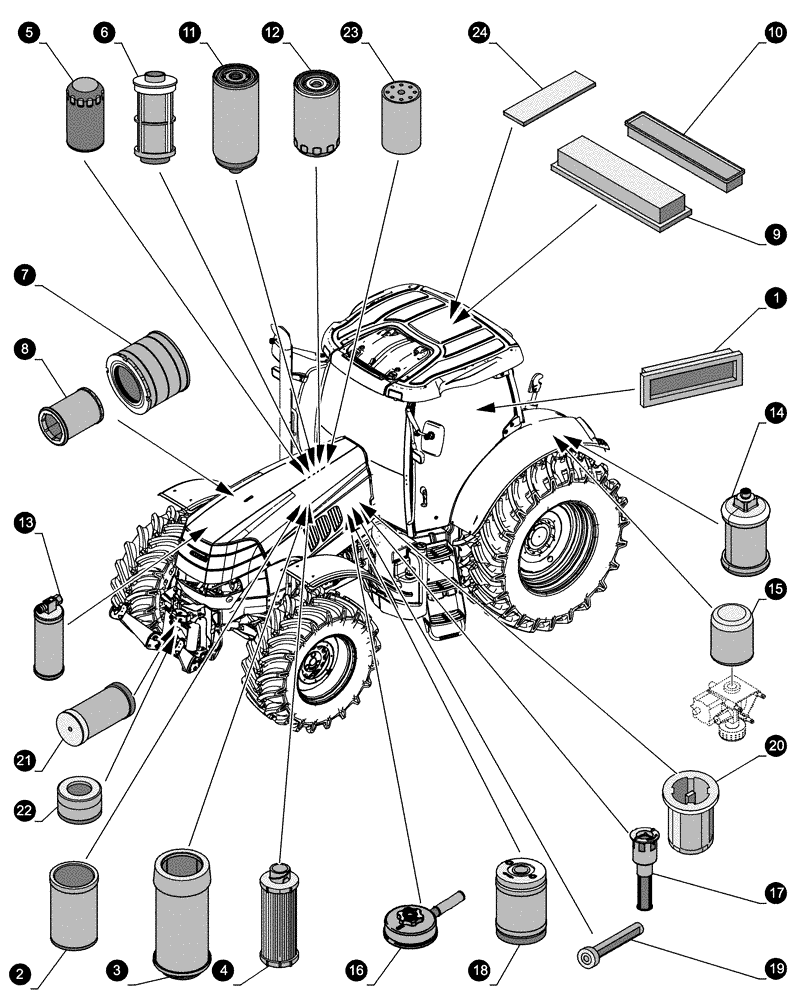

Запчасти Case IH PUMA 170 (05.100.04[01]) - MAINTENANCE PARTS - FILTERS (05) - SERVICE & MAINTENANCE

1

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Inner Thick Cartridge, Recirculation, Every 1200 hours or annually

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

2

87588814

HYDRAULIC OIL FILTER,151mm L

Transmission/Pump, Every 600 hours

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

Valid with VAR. 729004 / 743616

1шт.

3

84417139

ELEMENT,267.5mm L, 11 Micron

Transmission/Pump, Every 600 hours

1шт.

For the first Replacement order also : PN 84417137 Housing + PN 84550359 O-Ring

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

4

47617638

FILTER

Transmission/Pump, Every 600 hours

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

5

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

Engine Oil, Spin-On, Every 600 hours

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

6

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Pre-Cleaner, Every 600 hours

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

7

87517154

AIR FILTER,281.6mm ID x 284.4mm OD x 319mm L

Primary Cartridge, Every 1200 hours or annually

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

8

87517153

AIR FILTER,142.3mm ID x 150.9mm OD x 258mm L

Secondary Cartridge, Every 1200 hours or annually

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

9

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

Heating, Conditioning, w/High Profile Roof, Every 1200 hours or annually

2шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

10

87309516

CAB FILTER,Carbon

Inner Thick Cartridge, Recirculation, Every 1200 hours or annually

2шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

Valid with STD

1шт.

11

84278636

FUEL FILTER,96.2mm OD x 183mm L, M16x1.5 - 6H, W/ WIF Sensor (M14)

Primary, w/Water Separator, w/Sensor M14, Every 600 hours

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

12

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Secondary, Every 600 hours

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

13

47446235

RECEIVER-DRYER

A/C Condenser, Every 1200 hours or annually

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

14

84408141

HYDRAULIC OIL FILTER,60mm OD x 142.5mm L, 9/16-18

Transmission/Pump

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

15

87638772

CARTRIDGE,165mm L

Brake Fluid Tank, Every 1200 hours or every 2 years

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

16

504153151

ELEMENT

Oil Vapour Separator

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

17

84363730

FILTER STRAINER

ADBLUE/DEF Tank

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

18

84254852

FILTER

DeNOx2

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

19

84247272

FILTER,In-Line

ADBLUE/DEF Tank, Every 1200 hours or every 2years

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

20

84367903

FILTER

DEF Inline

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

21

84484094

FILTER

Transmission/Pump, Every 600 hours

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

22

84483496

FILTER

Transmission/Pump, Every 600 hours

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

23

87722692

FUEL FILTER

Engine Fuel Filter, Every 600 hours

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.

24

87726694

FOAM

Outer Cartridge, Foam, Every 1200 hours or annually

1шт.

Valid with PUMA 170-TRACTOR - CVT, PUMA 170-TRACTOR - CVT (ANZ), PUMA 170-TRACTOR - CVX, PUMA 185- TRACTOR - CVT, PUMA 185-TRACTOR - CVT (ANZ), PUMA 185-TRACTOR - CVX, PUMA 200-TRACTOR - CVT, PUMA 200-TRACTOR - CVT (ANZ), PUMA 200-TRACTOR - CVX, PUMA 215-TRACTOR - CVT, PUMA 215-TRACTOR - CVT (ANZ), PUMA 215-TRACTOR - CVX, PUMA 230-TRACTOR - CVT, PUMA 230-TRACTOR - CVT (ANZ), PUMA 230-TRACTOR - CVX Models

1шт.
