Запчасти Case IH PUMA 170 (31.114.04[01]) - 4 SPEED ELECTRICALLY SHIFTABLE PTO 540/540E/1000/1000E - SHAFT AND GEARS (VAR.743349 / 743611) (31) - IMPLEMENT POWER TAKE OFF

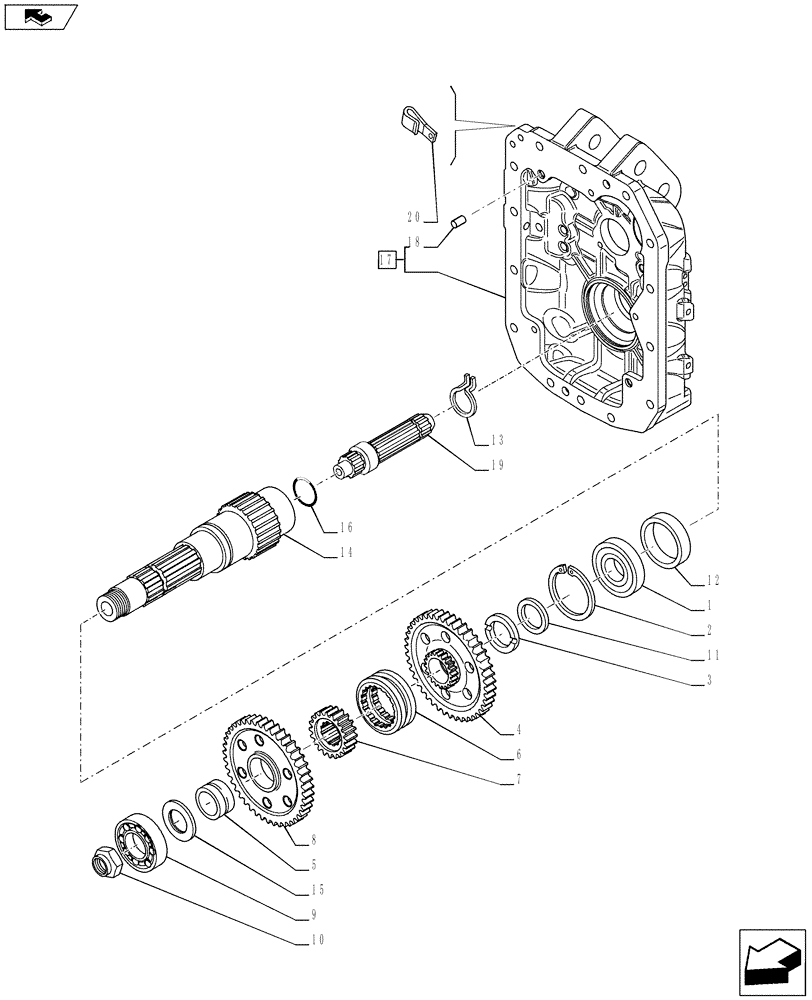

Схема запчастей Case IH PUMA 170 - (31.114.04[01]) - 4 SPEED ELECTRICALLY SHIFTABLE PTO 540/540E/1000/1000E - SHAFT AND GEARS (VAR.743349 / 743611) (31) - IMPLEMENT POWER TAKE OFF
6
18
20
13
5
8
14
home
15
17
16
9
3
19
11
12
2
4
10
1
7

Артикул

Название

Примечание

Количество

1

26794680

BALL BEARING,70.00mm x 125.00 x 24.00mm

70 x 125 x 24

1шт.

2

11076176

SNAP RING,M125, Int

1шт.

3

47132124

CIRCLIP,M70

D=70

1шт.

4

84192943

GEAR

Driven, 1000RPM

1шт.

5

84207460

BUSHING,44.4mm ID x 55mm OD x 40mm L

1шт.

6

87578126

SLEEVE,Z12

1шт.

7

87578128

GEAR,21T Internal / 33T External

1шт.

8

84192944

GEAR

Driven, 540RPM

1шт.

9

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

D=40 x 90 x 23

1шт.

10

5123114

RING NUT,Hex, M36 x 1.5

M36 x 1.5

1шт.

11

47131852

RETAINER,70.5mm ID x 86mm OD x 4mm Thk

D=70

1шт.

12

5196487

OIL SEAL,80.00mm ID x 100.00 OD x 10.00mm

80 x 100 x 10

1шт.

13

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

1шт.

14

47132123

SHAFT

1шт.

15

84207908

THRUST WASHER,40mm ID x 70mm OD x 4.5mm Thk

1шт.

16

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

2.62 x 56.82

1шт.

17

84192852

HOUSING

Contains Ref. 18

1шт.

18

44908048

BUSHING,16mm OD x 14mm L

2шт.

19

47130743

PTO SHAFT,6T Splines, 182mm L

1шт.

20

85700737

CLAMP,6.86mm ID, 14.99mm Bolt Hole, J Type

1шт.

Выбрано товаров: 20
