Запчасти Case IH PUMA 170 (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

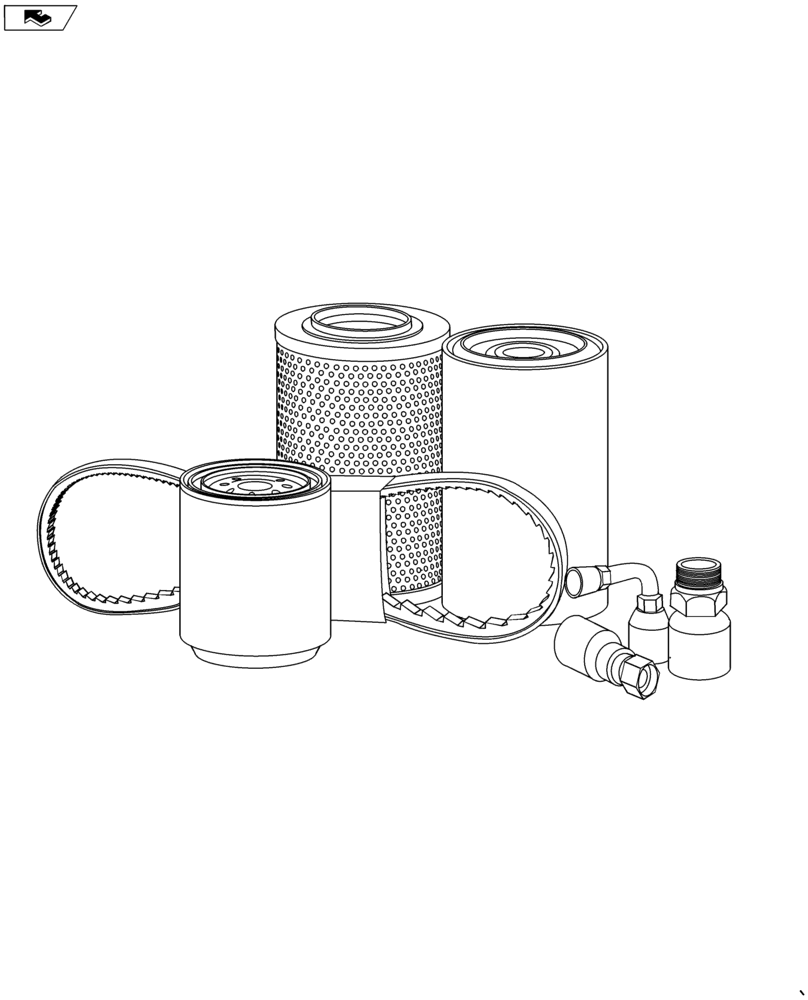

Схема запчастей Case IH PUMA 170 - (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE
home

Артикул

Название

Примечание

Количество

1

84146522

FILTER

Hydraulic Trailer Brake

1шт.

Valid with PUMA 170-CVT Model

1шт.

2

84170919

RECEIVER-DRYER

Pneumatic Trailer Brake, ASSY, Incl 24

1шт.

3

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

1шт.

Valid with PUMA 170-CVT Model

1шт.

4

84247272

FILTER,In-Line

DEF

1шт.

Valid with PUMA 170-CVT Model

1шт.

5

84254852

FILTER

Denox2

1шт.

Valid with PUMA 170-CVT Model

1шт.

6

84278636

FUEL FILTER,96.2mm OD x 183mm L, M16x1.5 - 6H, W/ WIF Sensor (M14)

Primary, with Sensor M14

1шт.

Valid with PUMA 170-CVT Model

1шт.

7

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Pre-Cleaner

1шт.

Valid with PUMA 170-CVT Model

1шт.

8

84363730

FILTER STRAINER

ADBLUE/DEF Tank

1шт.

Valid with PUMA 170-CVT Model

1шт.

9

84367903

FILTER

ADBLUE/DEF Lines

1шт.

Valid with PUMA 170-CVT Model

1шт.

10

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Secondary

1шт.

Valid with PUMA 170-CVT Model

1шт.

11

84417139

ELEMENT,267.5mm L, 11 Micron

Charge Pump

1шт.

For the first Replacement order also : PN 84417137 Housing + PN 84550359 O-Ring

1шт.

Valid with PUMA 170-CVT Model

1шт.

12

84483496

FILTER

Front HPL with PTO

1шт.

Valid with PUMA 170-CVT Model

1шт.

13

84484094

FILTER

Front HPL with PTO

1шт.

Valid with PUMA 170-CVT Model

1шт.

14

87309516

CAB FILTER,Carbon

Filter

2шт.

Valid with PUMA 170-CVT Model

1шт.

15

87343822

RECEIVER-DRYER

Air conditioning

1шт.

Valid with PUMA 170-CVT Model

1шт.

16

87517153

AIR FILTER,142.3mm ID x 150.9mm OD x 258mm L

Safety

1шт.

Valid with PUMA 170-CVT Model

1шт.

17

87517154

AIR FILTER,281.6mm ID x 284.4mm OD x 319mm L

Main

1шт.

Valid with PUMA 170-CVT Model

1шт.

18

87588814

HYDRAULIC OIL FILTER,151mm L

Vane Pump

1шт.

Valid with PUMA 170-CVT Model

1шт.

19

47617638

FILTER

Suction

1шт.

Valid with PUMA 170-CVT Model

1шт.

Include Cover Gasket

1шт.

20

87722692

FUEL FILTER

Biodiesel

1шт.

Valid with PUMA 170-CVT Model

1шт.

21

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

Air conditioning

2шт.

Valid with PUMA 170-CVT Model

1шт.

22

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Recirculation

1шт.

23

504153151

ELEMENT

Breather Assy

1шт.

Valid with PUMA 170-CVT Model

1шт.

24

87638772

CARTRIDGE,165mm L

Incl in 2, 165mm

1шт.

Valid with PUMA 170-CVT Model

1шт.

Выбрано товаров: 48
