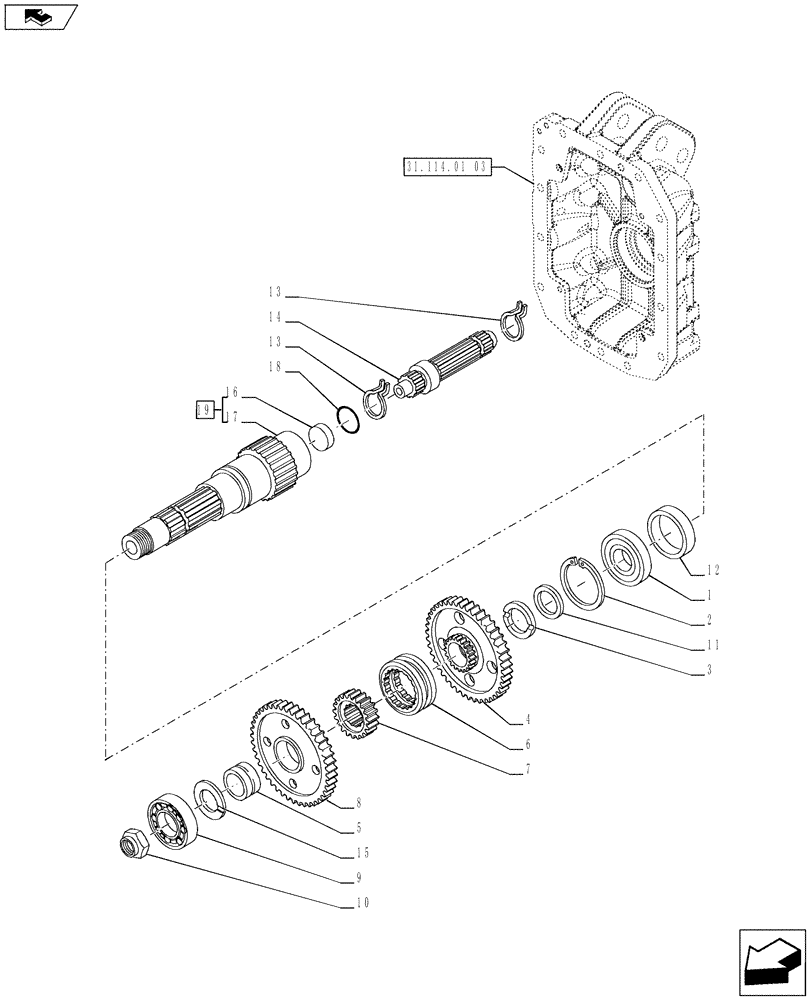

Запчасти Case IH PUMA 170 (31.114.01[01]) - POWER TAKE-OFF 1000E/1000 RPM - SHAFT AND GEARS (31) - IMPLEMENT POWER TAKE OFF

1

26794680

BALL BEARING,70.00mm x 125.00 x 24.00mm

70 x 125 x 24

1шт.

2

11076176

SNAP RING,M125, Int

1шт.

3

47132124

CIRCLIP,M70

D=70

1шт.

4

87605012

GEAR

Driven, 1000E RPM

1шт.

5

5151437

BUSHING,44.4mm ID x 55mm OD x 35mm L

1шт.

6

87578126

SLEEVE,Z12

1шт.

7

87578128

GEAR,21T Internal / 33T External

1шт.

8

87605013

GEAR

Driven, 1000 RPM

1шт.

9

5138660

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

D=40 x 90 x 23

1шт.

10

5123114

RING NUT,Hex, M36 x 1.5

M36 x 1.5

1шт.

11

47131852

RETAINER,70.5mm ID x 86mm OD x 4mm Thk

D=70

1шт.

12

5196487

OIL SEAL,80.00mm ID x 100.00 OD x 10.00mm

80 x 100 x 10

1шт.

13

87347166

SNAP RING,M45 x 3.12mm Thk, Ext

2шт.

14

47130744

PTO SHAFT,21T, 20T, 182mm L

1000 RPM, 21 teeth

1шт.

14

47132584

PTO SHAFT

1шт.

VAR.720792 20 Spline 1" 3/4 Shaft

1шт.

15

5182629

ANTI-WRAP PLATE

1шт.

16

5179204

PLUG,20.27mm OD x 6.38mm W

1шт.

17

47131841

SHAFT

1шт.

18

14459881

O-RING,2.237" ID x 2.443" OD x 0.103"

2.62 x 56.82

1шт.

19

47132123

SHAFT

Contains Ref. 16,17

1шт.
