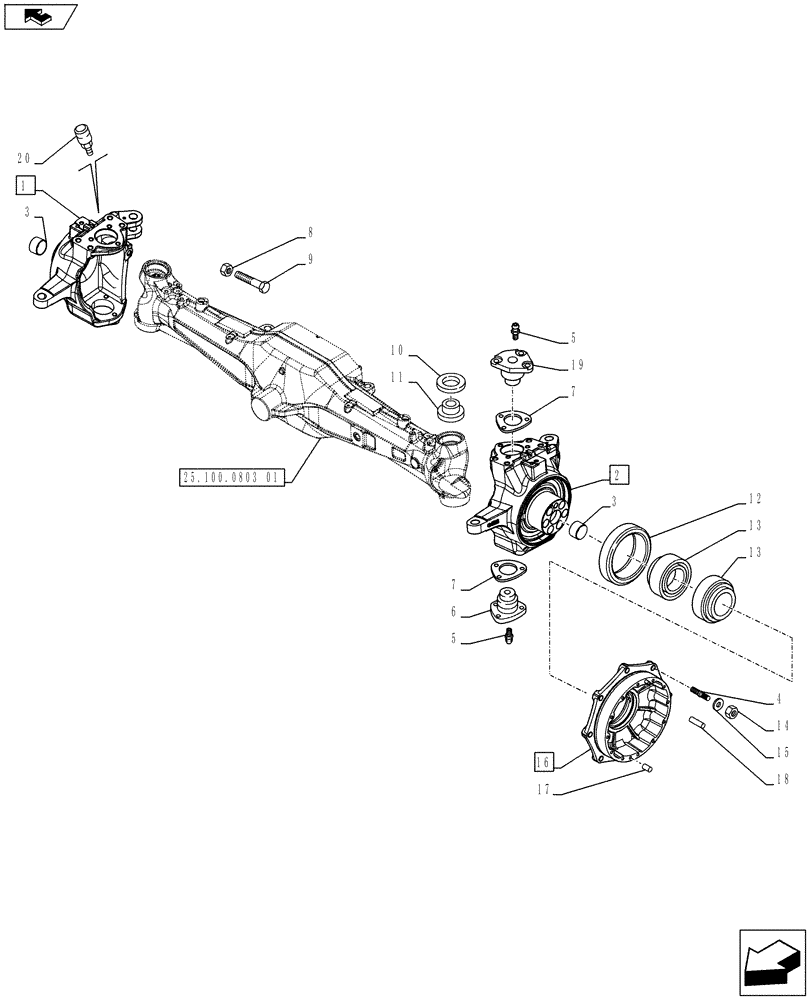

Запчасти Case IH PUMA 170 (25.108.0103) - ABS SYSTEM - 4WD FRONT AXLE WITH SUSPENSION AND BRAKES - STEERING KNUCKLES AND HUBS (VAR.743964) (25) - FRONT AXLE SYSTEM

1

84263790

STEERING KNUCKLE

ASSY, Contains Ref. 3; RH

1шт.

2

84263793

STEERING KNUCKLE,LH

ASSY, Contains Ref. 3; LH

1шт.

3

5104085

BUSHING,45mm ID x 50mm OD x 30mm L

2шт.

4

87618916

STUD

16шт.

5

13407211

LUBE NIPPLE,M10 x 1

M10 x 1 x 18 mm

3шт.

6

87382384

BALL STUD

2шт.

7

5137114

SHIM,70.5mm ID x 115mm OD x 0.1mm Thk

0.10 mm Thk

1шт.

7

5137115

SHIM,0.15mm Thk

0.15 mm Thk

1шт.

7

5137116

SHIM,70.5mm ID x 115mm OD x 0.2mm Thk

0.20 mm Thk

1шт.

7

5137117

SHIM,70.5mm ID x 115mm OD x 0.25mm Thk

0.25 mm Thk

1шт.

7

5137118

SHIM,70.5mm ID x 115mm OD x 0.3mm Thk

0.30 mm Thk

1шт.

8

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

M18

1шт.

9

87751874

ADJUSTMENT SCREW,M18 x 120mm, Cl 10.9

1шт.

10

5121907

SEAL,70mm ID x 90mm OD x 11mm Thk

3шт.

11

5119660

BALL JOINT,40mm ID x 80mm OD x 24.75mm W

3шт.

12

87355801

SEAL,190mm ID x 220mm OD x 17mm Thk

2шт.

13

87303827

TAPERED BEARING,120mm ID x 170mm OD x 27mm W

D = 170 x 120 x 27 mm

2шт.

14

10790524

NUT,M16 x 1.5

M16 x 1.5 mm

16шт.

15

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

M17 x 32 x 5 mm

16шт.

16

87600174

HUB

ASSY, Contains Ref. 17

2шт.

17

4985063

DOWEL,12mm OD x 20mm L

4шт.

18

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

16шт.

19

87382381

BALL STUD

1шт.

20

13413290

BREATHER

2шт.
