Case IH
/
Тракторы
/
Сельскохозяйственные
/
PUMA CVT 165-230
/
(PUMA 170) - TRACTOR - CVT (12/10-12/14)
/
(25) - FRONT AXLE SYSTEM
/

(25.102.0101[01]) - 4WD FRONT AXLE WITH ACTIVE SUSPENSIONS - BEVEL GEAR PAIR (VAR.720463-728212)

Запчасти Case IH PUMA 170 (25.102.0101[01]) - 4WD FRONT AXLE WITH ACTIVE SUSPENSIONS - BEVEL GEAR PAIR (VAR.720463-728212) (25) - FRONT AXLE SYSTEM

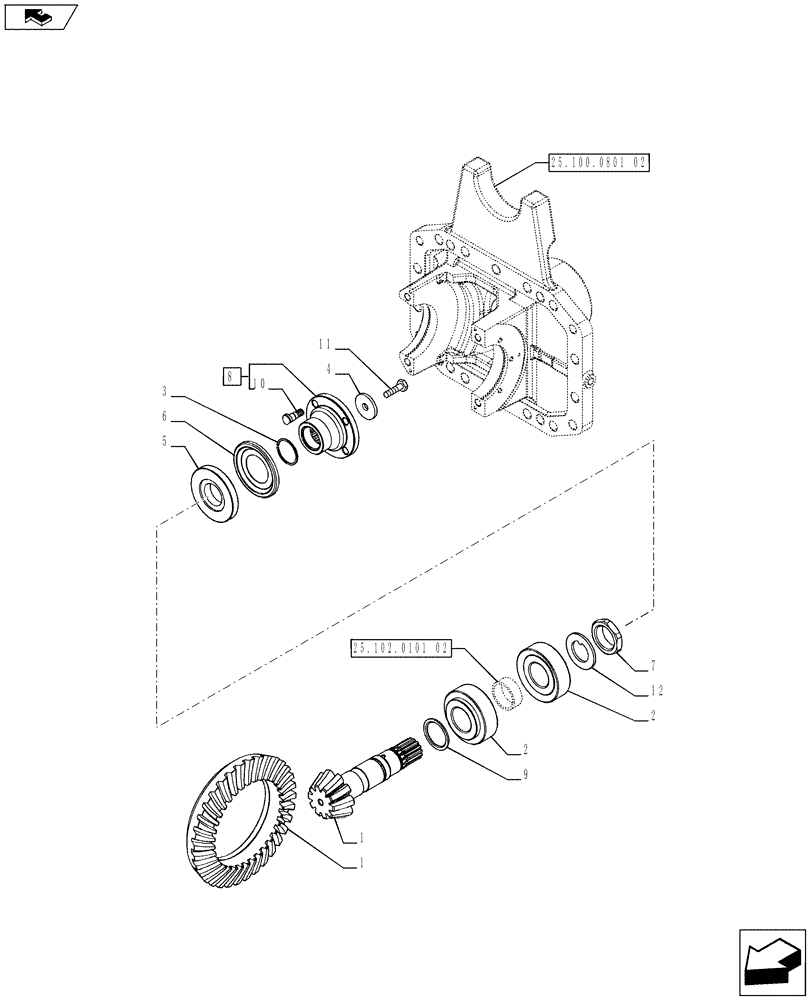

Схема запчастей Case IH PUMA 170 - (25.102.0101[01]) - 4WD FRONT AXLE WITH ACTIVE SUSPENSIONS - BEVEL GEAR PAIR (VAR.720463-728212) (25) - FRONT AXLE SYSTEM
4
3
6
1
12
10
1
25.102.0101 02
home
25.100.0801 02
5
2
7
8
2
11
9

№

Артикул

Название

Примечание

Количество

1

84381885

BEVEL GEAR

Ratio 10/34, Serial Range: -C7130

1шт.

1

84365312

GEAR SET

Ratio 10/34, Start Serial: D7130

1шт.

2

5141714

TAPERED BEARING,45mm ID x 85mm OD x 20mm W

45X100X38,25

2шт.

3

5168195

SNAP RING,1.5mm Thk, Ext

1шт.

4

87350787

WASHER

1шт.

5

87355233

SEAL,42mm ID x 101mm OD x 17.5mm Thk

1шт.

6

87525554

SEAL PROTECTION

1шт.

7

5147930

RING NUT,M45 x 1.5

M45X1,5

1шт.

8

87621411

FLANGE

Contains Ref. 10

1шт.

9

84219417

SHIM,45.1mm ID x 58mm OD x 1.9mm Thk

MM45.1 x 58 x 1.9

1шт.

Mounted with p.n. 84381885 only

1шт.

9

84219416

SHIM,45.1mm ID x 58mm OD x 2mm Thk

MM45.1 x 58 x 2.0

1шт.

Mounted with p.n. 84381885 only

1шт.

9

84219415

SHIM,45.1mm ID x 58mm OD x 2.1mm Thk

MM45.1 x 58 x 2.1

1шт.

Mounted with p.n. 84381885 only

1шт.

9

84219414

SHIM,45.1mm ID x 58mm OD x 2.2mm Thk

MM45.1 x 58 x 2.2

1шт.

Mounted with p.n. 84381885 only

1шт.

9

5121690

RING,45.1mm ID x 58mm OD x 2.3mm Thk

1шт.

Mounted with p.n. 84381885 only

1шт.

9

5121691

RING,45.1mm ID x 58mm OD x 2.4mm Thk

1шт.

Mounted with p.n. 84381885 only

1шт.

9

4999063

SHIM,45.1mm ID x 58mm OD x 2.5mm Thk

1шт.

Mounted with p.n. 84381885 only

1шт.

9

4999064

SHIM,45.1mm ID x 58mm OD x 2.6mm Thk

1шт.

Mounted with p.n. 84381885 only

1шт.

9

4999065

SHIM,45.1mm ID x 58mm OD x 2.7mm Thk

1шт.

Mounted with p.n. 84381885 only

1шт.

9

4999066

RING,45.1mm ID x 58mm OD x 2.8mm Thk

1шт.

Mounted with p.n. 84381885 only

1шт.

9

4999067

SHIM,45.1mm ID x 58mm OD x 2.9mm Thk

1шт.

Mounted with p.n. 84381885 only

1шт.

9

4999068

SHIM

MM45.1 x 58 x 3.0

1шт.

Mounted with p.n. 84381885 only

1шт.

9

4999069

RING

SPARE PART MM45.1 x 58 x 3.1

1шт.

Mounted with p.n. 84381885 only

1шт.

9

4999070

RING

MM45.1 x 58 x 3.2

1шт.

Mounted with p.n. 84381885 only

1шт.

9

4999071

RING

SPARE PART MM45.1 x 58 x 3.3

1шт.

Mounted with p.n. 84381885 only

1шт.

9

4999072

RING

MM45.1 x 58 x 3.4

1шт.

Mounted with p.n. 84381885 only

1шт.

9

4999073

RING

SPARE PART MM45.1 x 58 x 3.5

1шт.

Mounted with p.n. 84381885 only

1шт.

10

87550808

PIN,12.5mm OD x 37mm L

12шт.

11

15540431

SCREW,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

12

84368680

SPECIAL WASHER

1шт.

Выбрано товаров: 46
