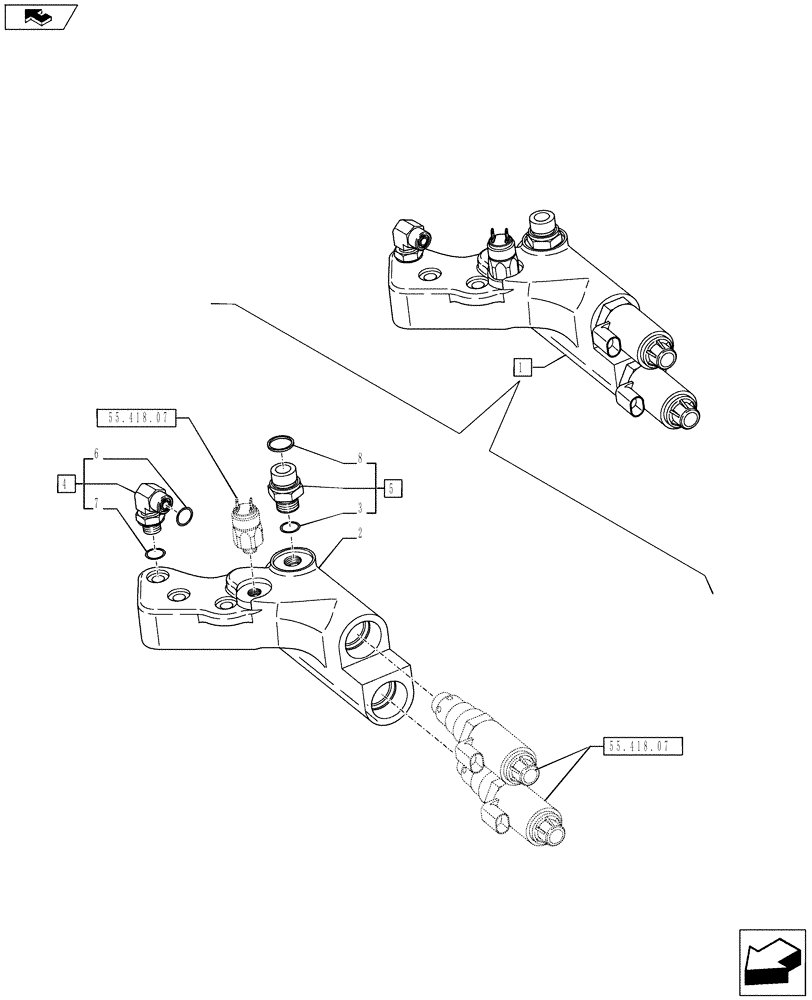

Запчасти Case IH PUMA 170 (25.100.02[05]) - CLASS 4 4WD AXLE WITH ACTIVE SUSPENSION SKY HOOK - VALVE - BREAKDOWN - C7090 (VAR.720463-728212) (25) - FRONT AXLE SYSTEM

1

87383948

ELECTRO-VALVE

ASSY, Contains Ref. 1-8

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

5185050

ELBOW,M16 x 1.5 x 37mm

ASSY, Contains Ref. 6, 7

1шт.

5

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

ASSY

1шт.

6

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

7

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

8

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.
