(25.100.02[04A]) - CLASS 4 4WD AXLE WITH ACTIVE SUSPENSION SKY HOOK - CYLINDER AND VALVE - BREAKDOWN - D7090 (VAR.720463-743963-743964)

Запчасти Case IH PUMA 170 (25.100.02[04A]) - CLASS 4 4WD AXLE WITH ACTIVE SUSPENSION SKY HOOK - CYLINDER AND VALVE - BREAKDOWN - D7090 (VAR.720463-743963-743964) (25) - FRONT AXLE SYSTEM

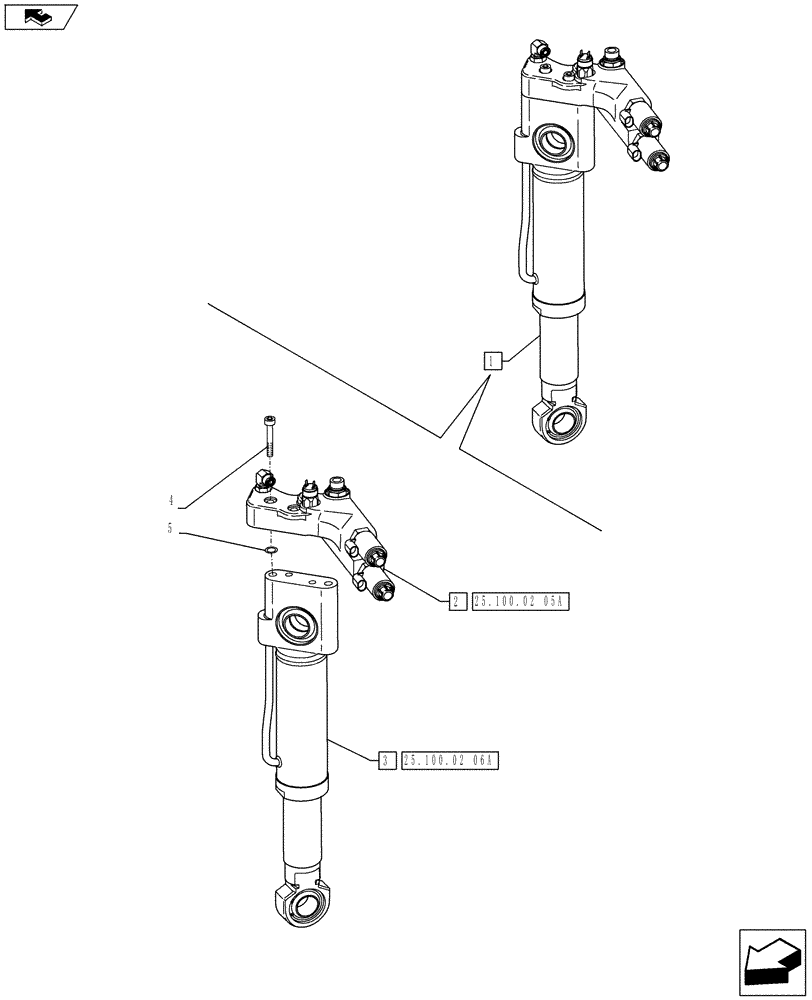

Схема запчастей Case IH PUMA 170 - (25.100.02[04A]) - CLASS 4 4WD AXLE WITH ACTIVE SUSPENSION SKY HOOK - CYLINDER AND VALVE - BREAKDOWN - D7090 (VAR.720463-743963-743964) (25) - FRONT AXLE SYSTEM
25.100.02 06a
2
5
3
1
25.100.02 05a
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84486825

OPERATING CYLINDER,Double Acting, 60mm Rod

ASSY, Contains Ref. 2-5

1шт.

2

84486852

ELECTRO-VALVE

1шт.

3

87644387

CYLINDER,60mm Rod, 146mm Stroke

1шт.

4

14420874

SCREW,M10 x 60mm, Cl 12.9

2шт.

5

14457181

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.
